Drum Feeder DA 376
Dosing for the FD Pro series
- Foreign matter separator for free-flowing products
- Separation of magnetic foreign matter and heavy particles
- Load-dependent dosing of the product to the mill
- Integrated explosion decoupling to the pre-hopper
Recommended for
The Feeding Device for the FD Pro Series
Feeding and Foreign Part Separation in a Compact Space

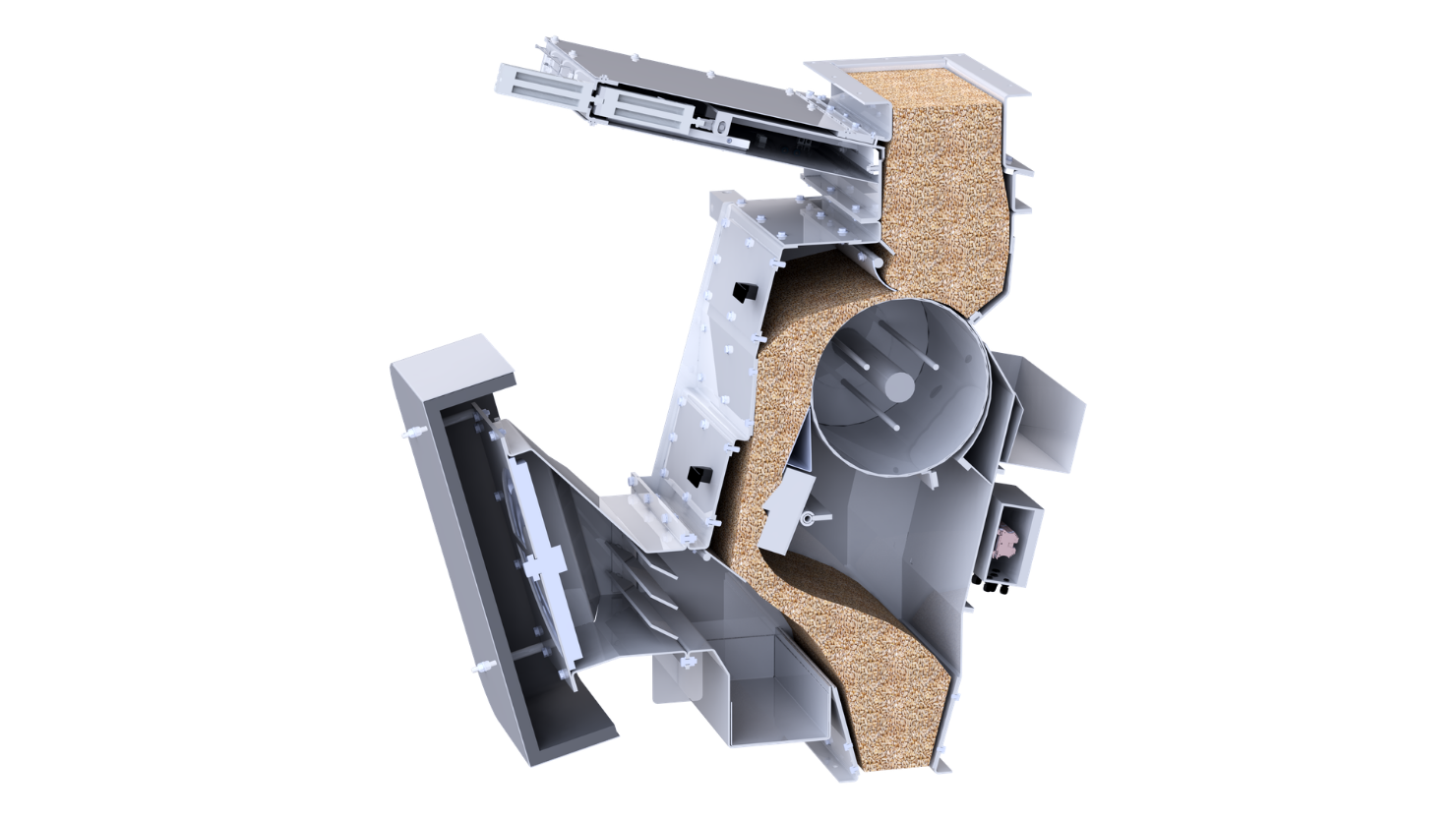

The drum feeding device distributes the material from a pre-hopper evenly across the entire width of the hammer mill. By regulating the speed of the drum, the amount of material can be charged depending on the mill motor load.
The drum feeder is additionally used for aspiration of the hammer mill and for continuous separation of foreign bodies of all kinds by means of a magnet and cross-flow sifting.
Take Advantage of These Benefits
Precise Feeding and Efficient Foreign Body Separation
- Load-dependent feeding of the hammer mill in combination with a controlled frequency converter
- An extra strong permanent magnet for the separation of magnetic foreign bodies
- Cross-flow sifting for separation of non-magnetic foreign bodies and heavy parts
- Air flow adjustable to product properties with vanes
- Pneumatically operated slide gate for shutting off the prehopper after the end of the batch
- Integrated empty indicator
Reliable Operation and Long Service Life
- Robust welded steel construction for continuous industrial operation (24/7)
High Availability
- Avoidance of mill downtimes due to damage caused by foreign bodies
- Easy access for cleaning and maintenance through maintenance doors
- Magnet can be pulled out for easy cleaning
- Catch tray for cleaning the magnet, is hooked into the door opening
- Easy emptying of the heavy parts catch tray
High Safety of Personnel and Plant
- Pressure shock resistant and flameproof design (0.4 bar)
- ATEX design according to zone 21 (II 2 D) inside and 22 (II 3 D) outside optionally possible

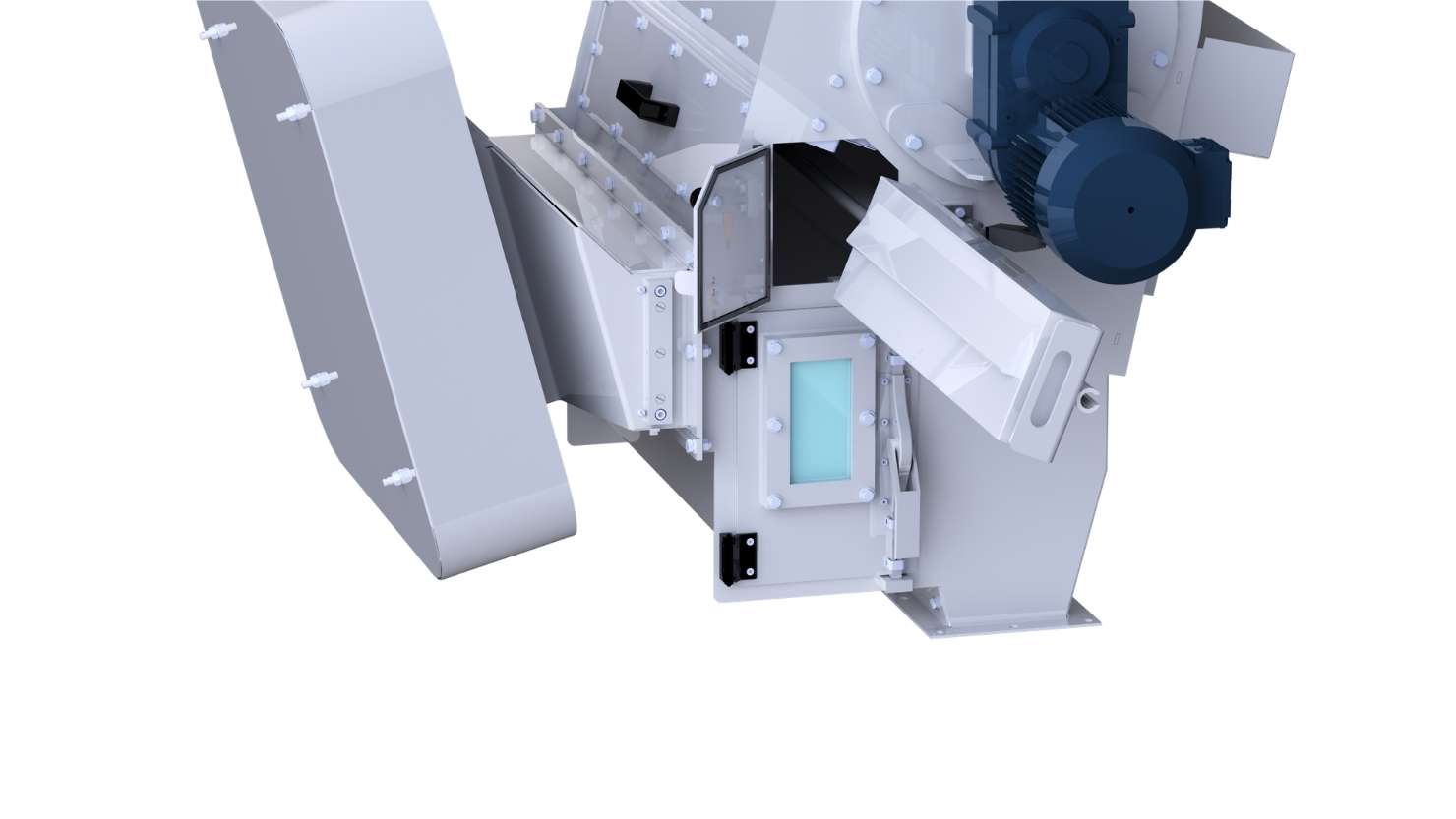

Magnet can be pulled out for cleaning

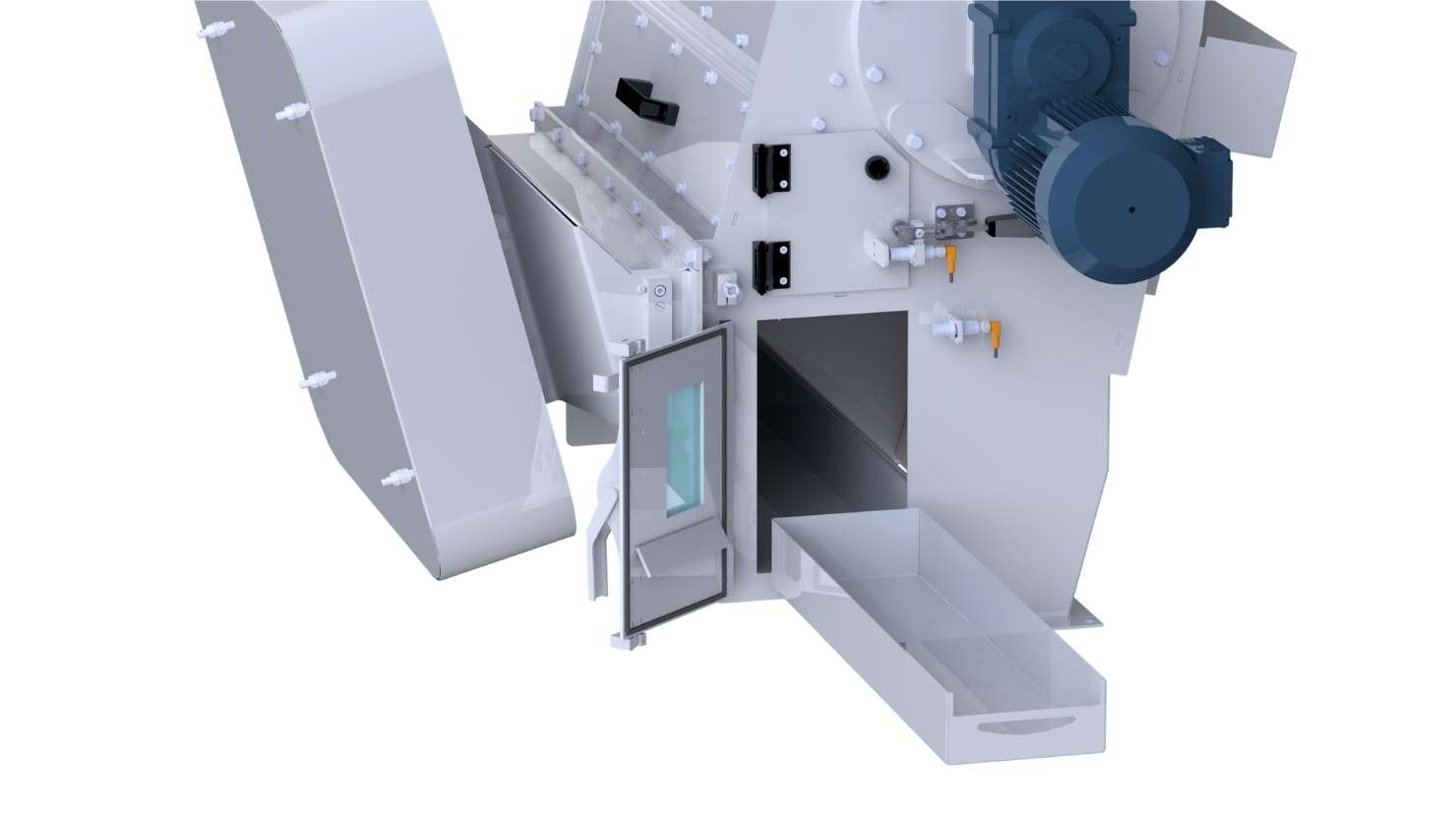

Removable catch tray for heavy parts

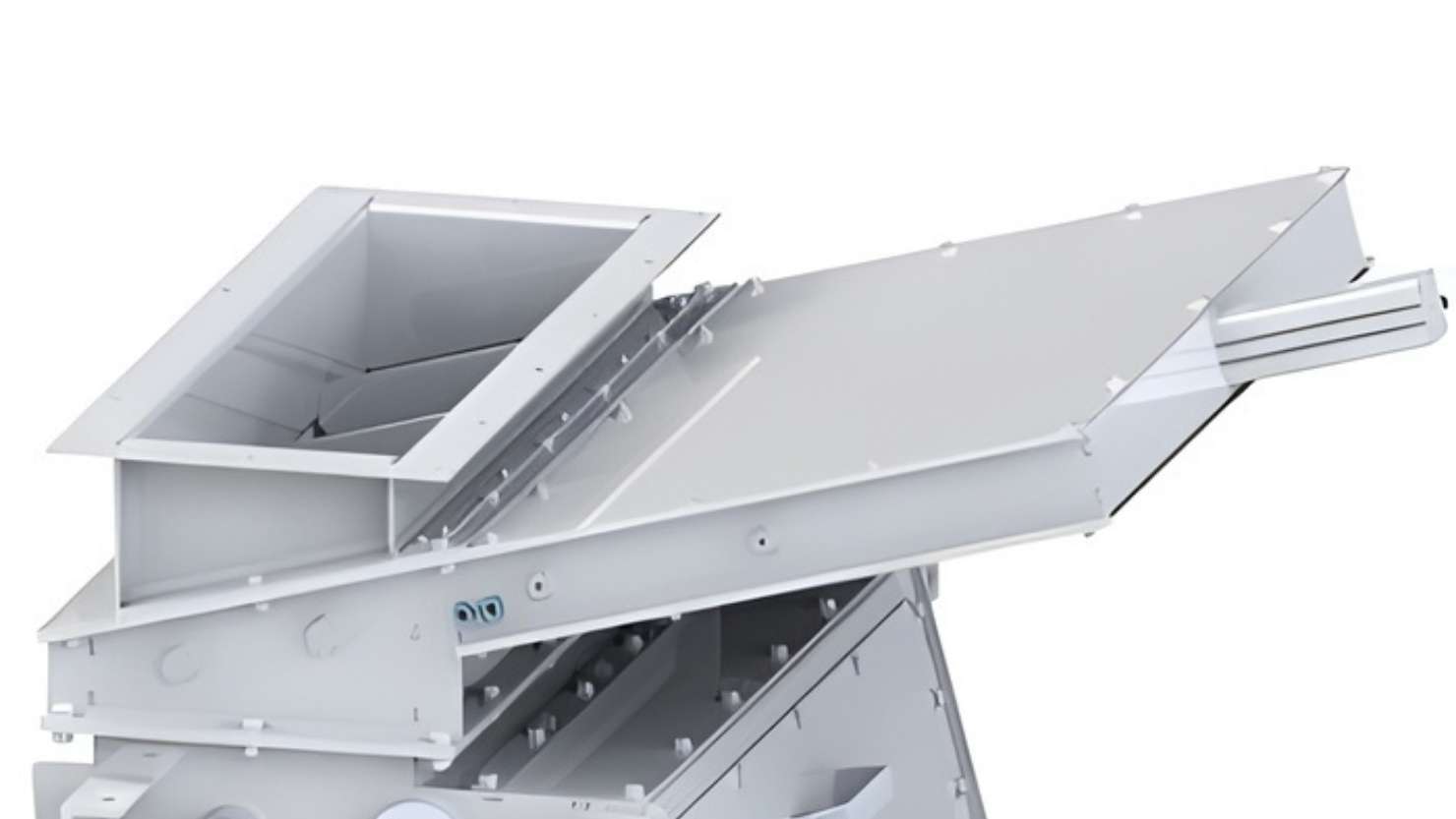

Pneumatic slide gate

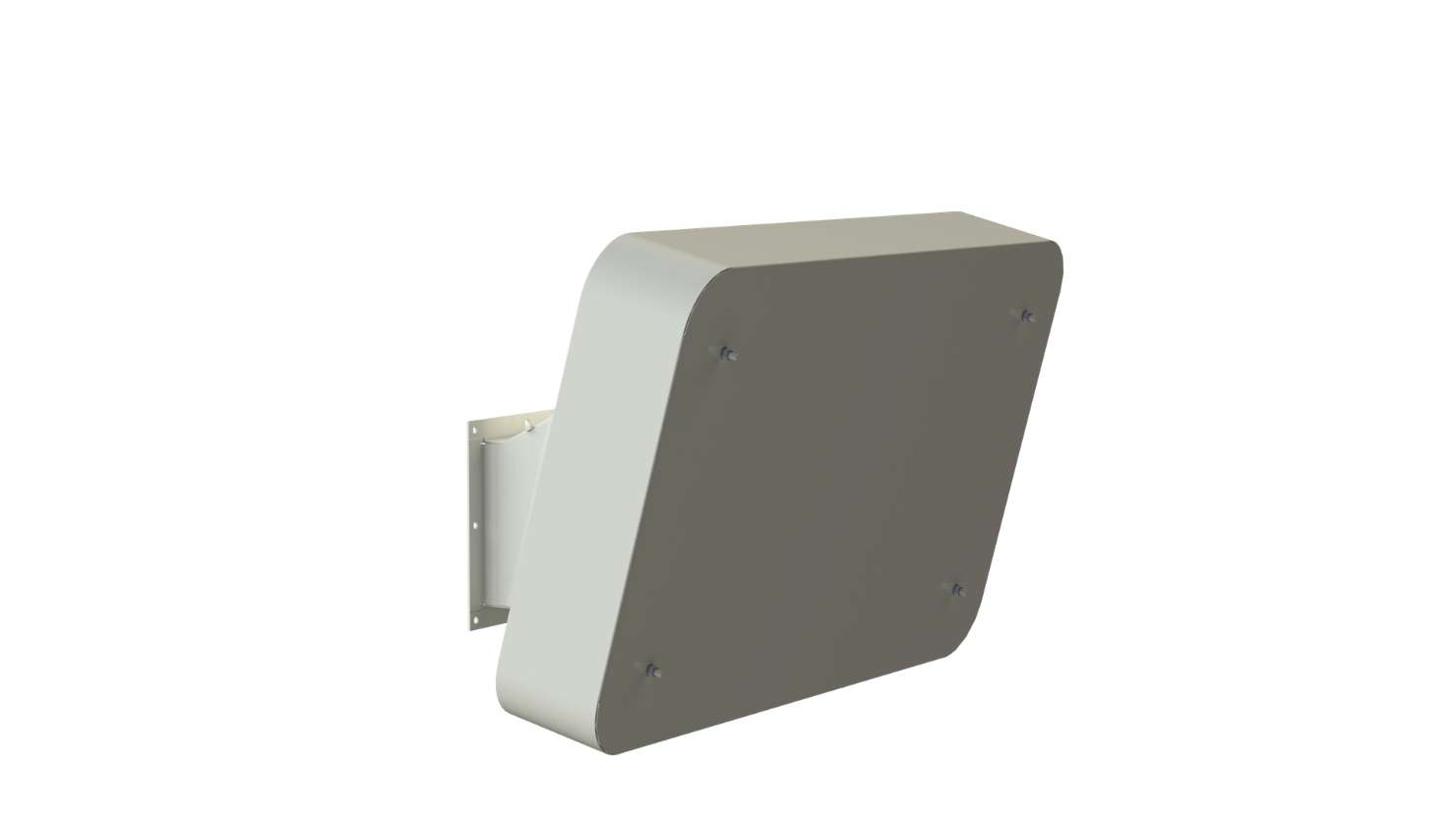

Aspiration air valve A-Vent for explosion isolation (optional)
Technical Data
| Machine types | DA 376 |
| Throughput capacity at 0.6 t/m³ (t/h) | 46,8 |
| Throughput (m³/h) | 78 |
| Air volume (m³/min) | 80-110 |
| Dimensions and Weight | |
| Working width (mm) | 760 |
| Installation height (mm) | 1500 |
| Width (mm) | 1310 |
| Depth (mm) | 1200 |
| Weight (approx. kg) | 500 |
| Drive | |
| Gear motor (kW) | 1,5 |
