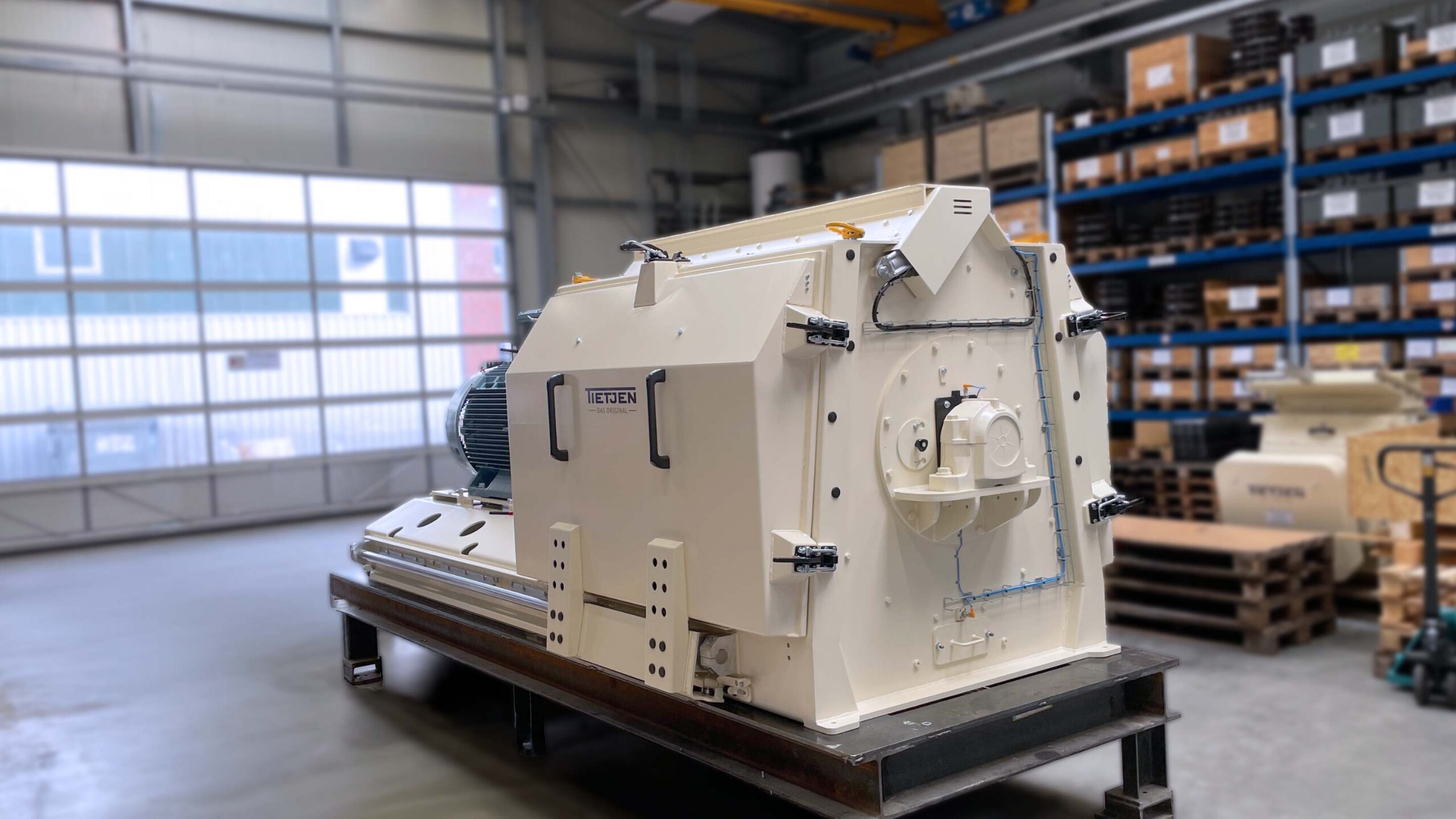

Hammer Mill FD Pro
Designed for manufacturers of pet food and fish feed
- Highest throughput: Up to 4.8 m² (7,440 in²) sieve area
- Suitable for fat- and protein-rich recipes
- Highest fineness: Peripheral speed 122 m/s
- Quick and easy screen change during standstill
Recommended for
Possible for
Ideal for Pet Food and Aquatic Feed Producers
Well proven Tietjen Quality
The hammer mills of the FD Pro series are optimized for the fine grinding of fat and protein-rich recipes. Their sizes are tailored to common extruder capacities and can even serve the latest extruder lines with just one machine. The mills feature a special screen holder and seal to limit the maximum particle size. The beaters can be changed quickly and easily thanks to the proven Tietjen beater frame system.
Take Advantage of These Benefits
High Throughput and High Fineness
- Energy-efficient fine grinding of fish feed, pet food, and other products
- Optimized impact zone with hardened impact plates
- Extension of the impact zone for higher fineness and a narrower grist spectrum possible with impact plates
- Special sealing of the screens so that no coarse off spec particles enter the product
- Variable grist spectrum by changing the beater speed (when using a frequency converter), the screen perforation and the beater configuration
Reliable Operation and Long Durability

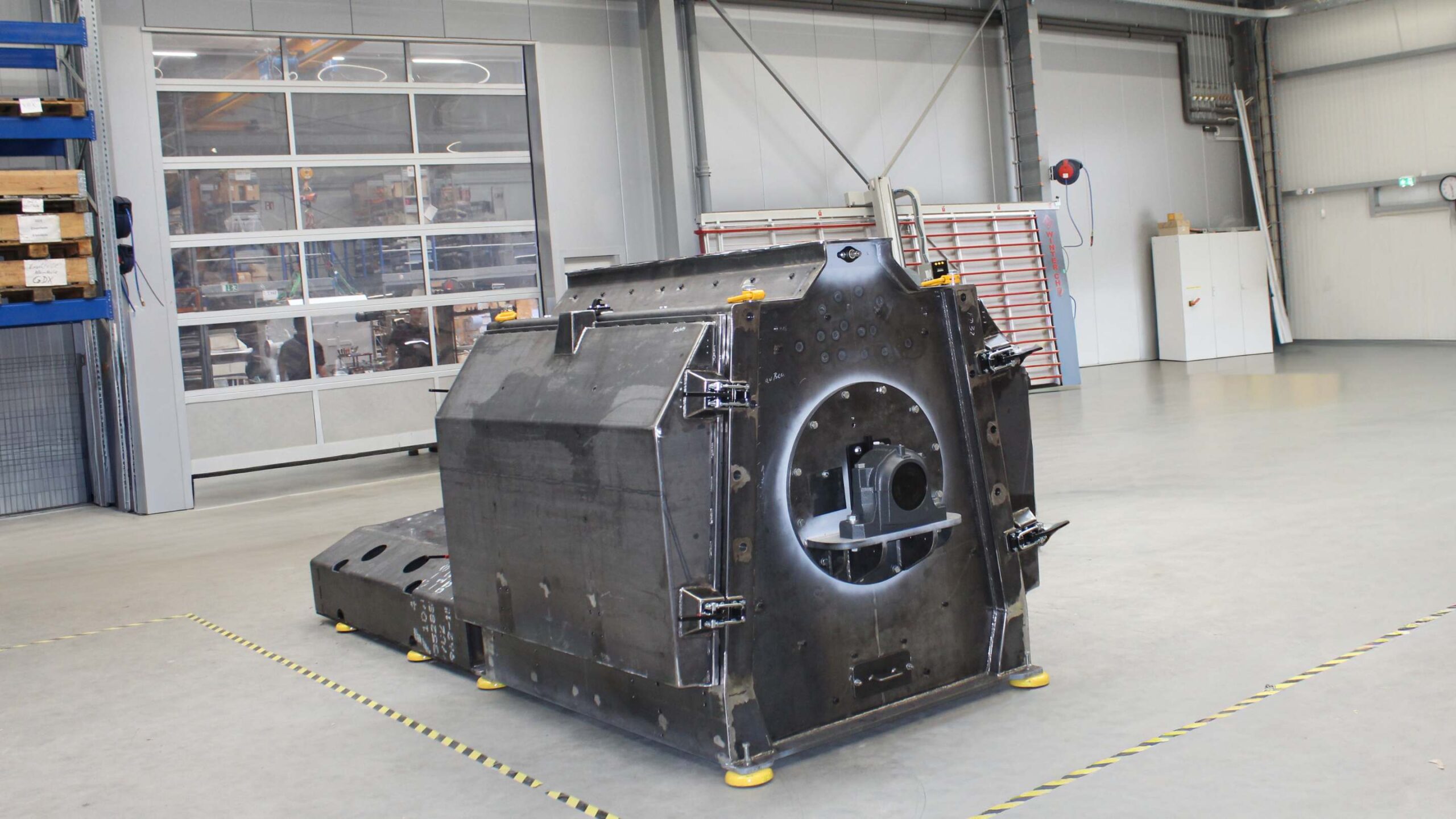

- Robust welded steel construction
- Grinding chamber equipped with wear elements to protect the housing, easy to replace
- Durable, optimized rotor design, dynamically balanced, operation in both directions of rotation
- Foreign matter catch trap for impurities
High Availability with Low Downtimes
- Quick and easy beater change thanks to beater frame system, beaters can be replaced outside the mill
- Solid screen frames and screen fixing with toggle clamps – easy and reliable to operate
- Rotor with short run-down time < 6 min without brake
- Sliding doors: quick and easy access to the machine interior
- 2 x 4-part screen segments, quick and easy to replace segment by segment
- Reduced distance between beaters and screens prevents clogging of the screens
High level of Saftey for Personnel and Equipment
- Standstill monitoring with door safety device
- Pressure shock resistant and flame-proof
- ATEX design in accordance with Zone 21 (II 2 D) inside and Zone 22 (II 3 D) outside optionally available

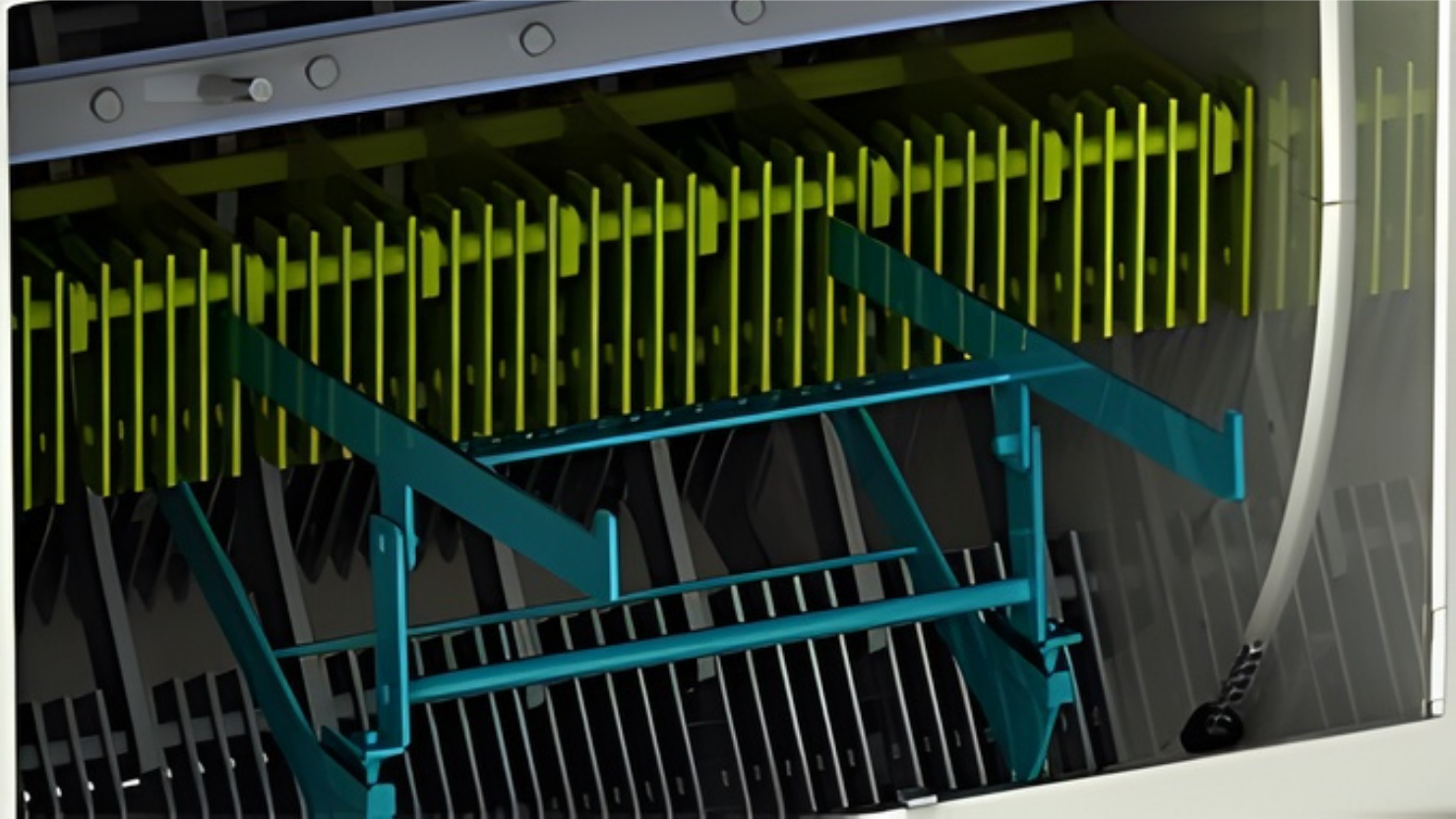

Beater frame system for quick and easy beater change

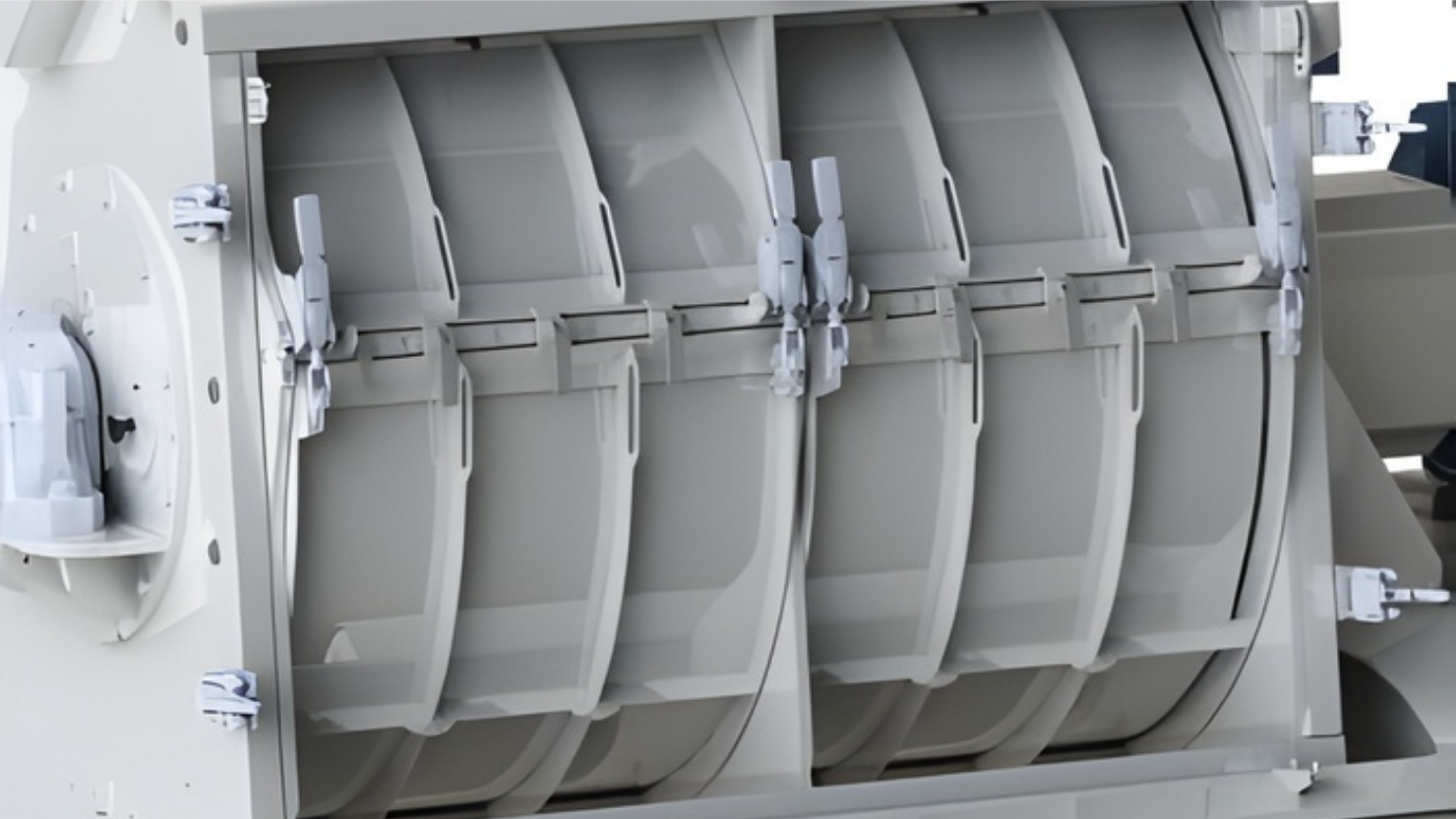

Special screen sealing and support basket for fine grinding, quick fastening with toggle clamps

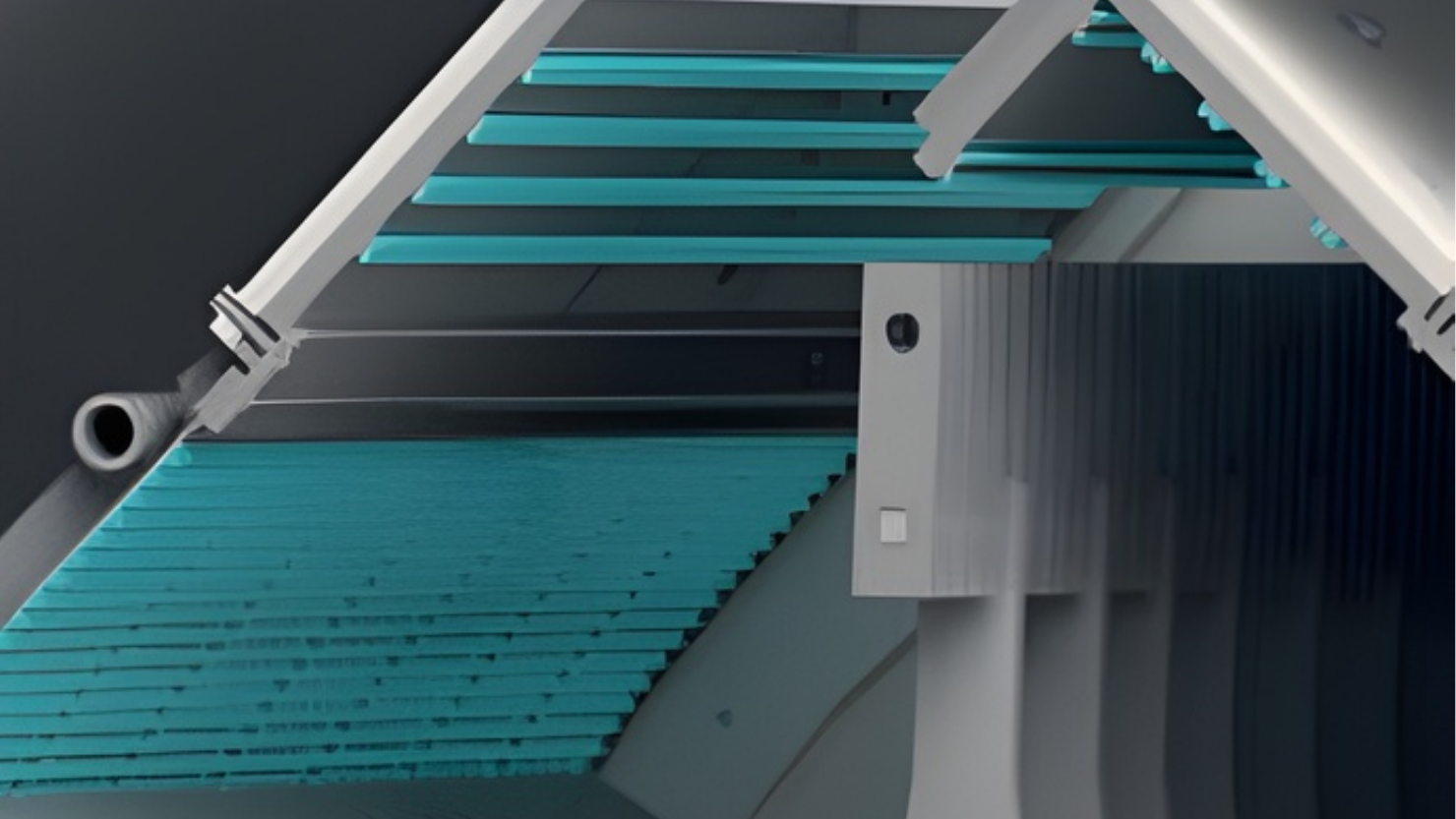

Additional impact plates instead of the upper screens (option)

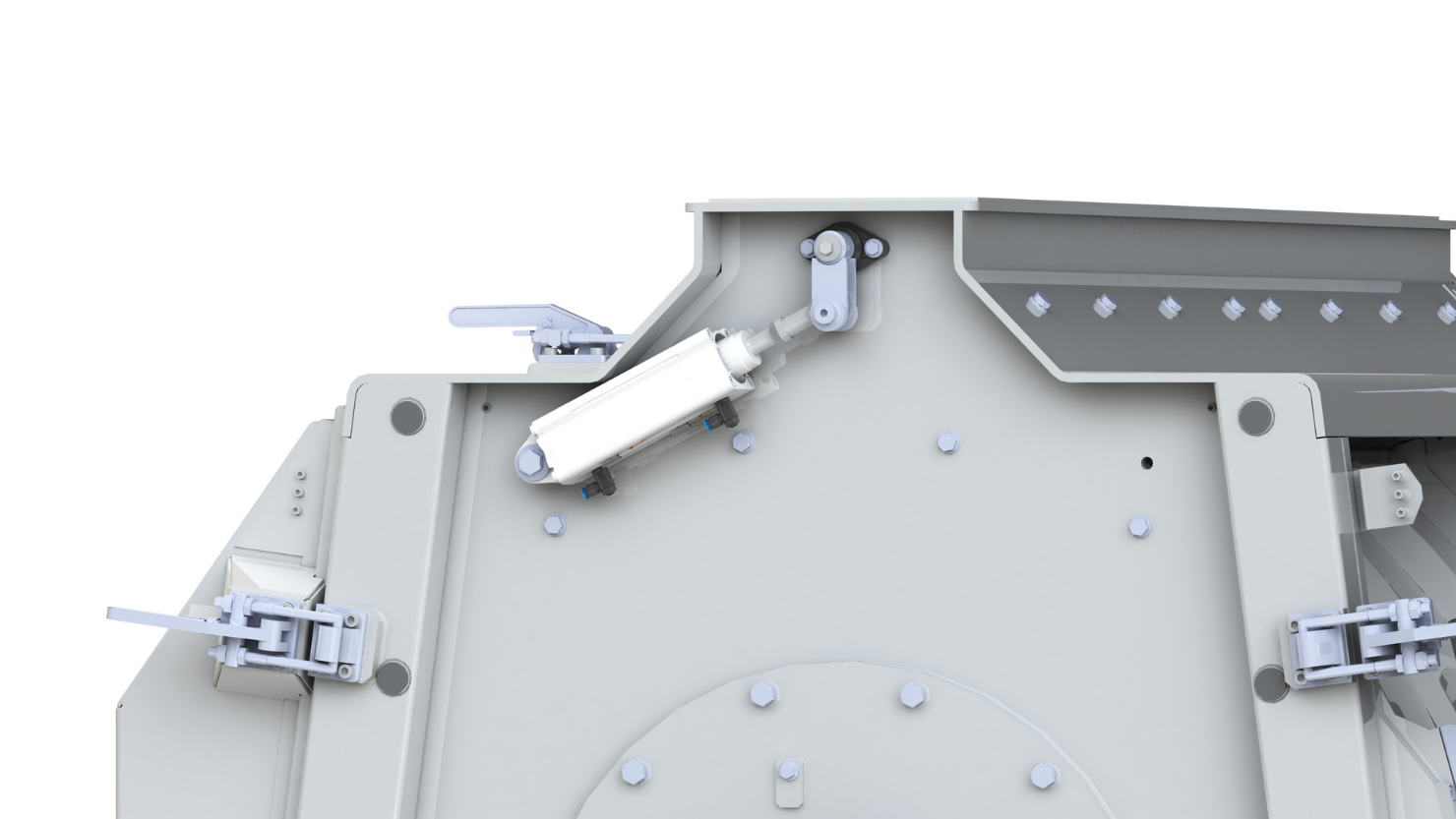

Pneumatically operated inlet flap for operation in both directions of rotation

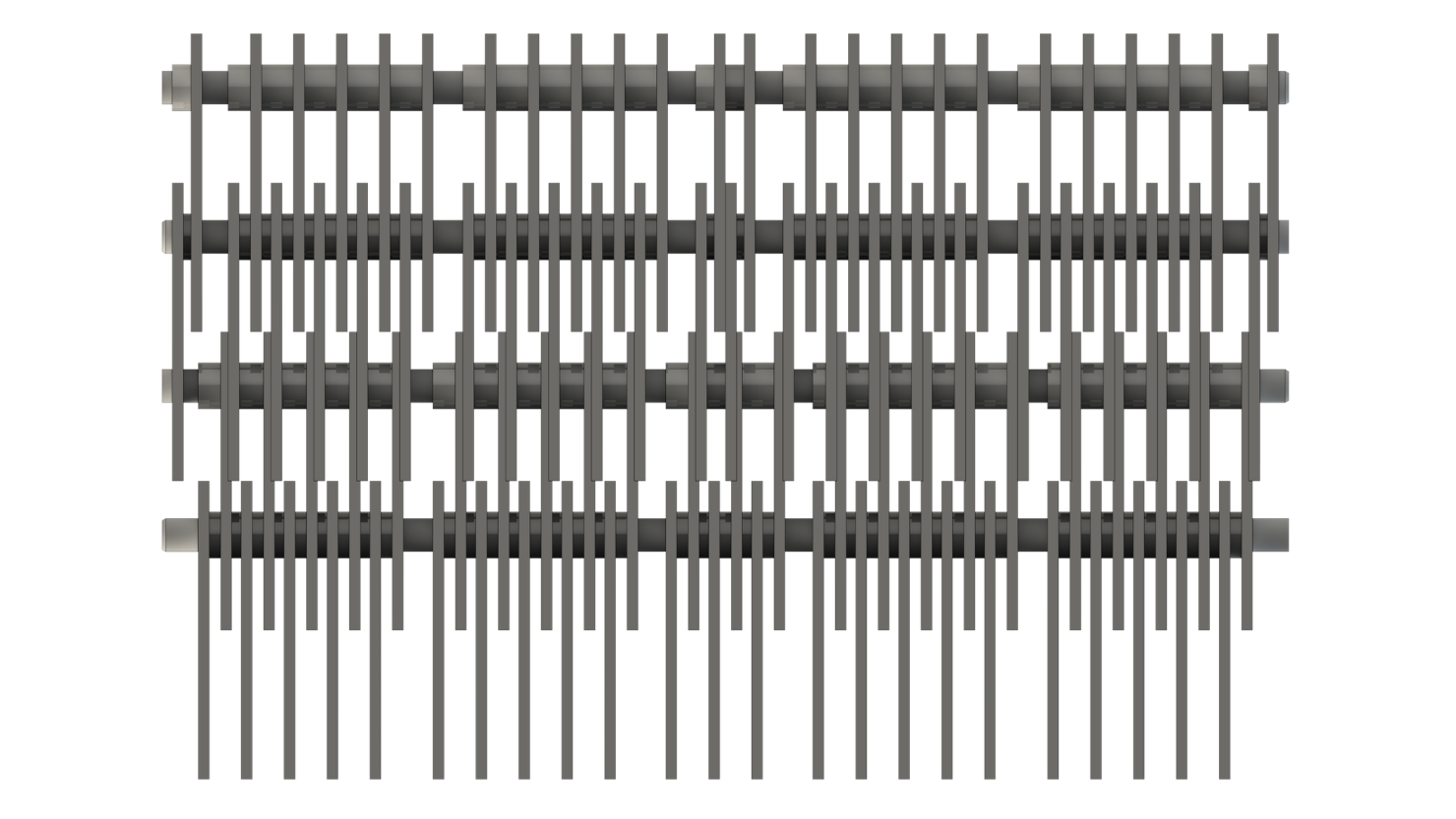

Beater arrangement and wiping area adapted to fine grinding

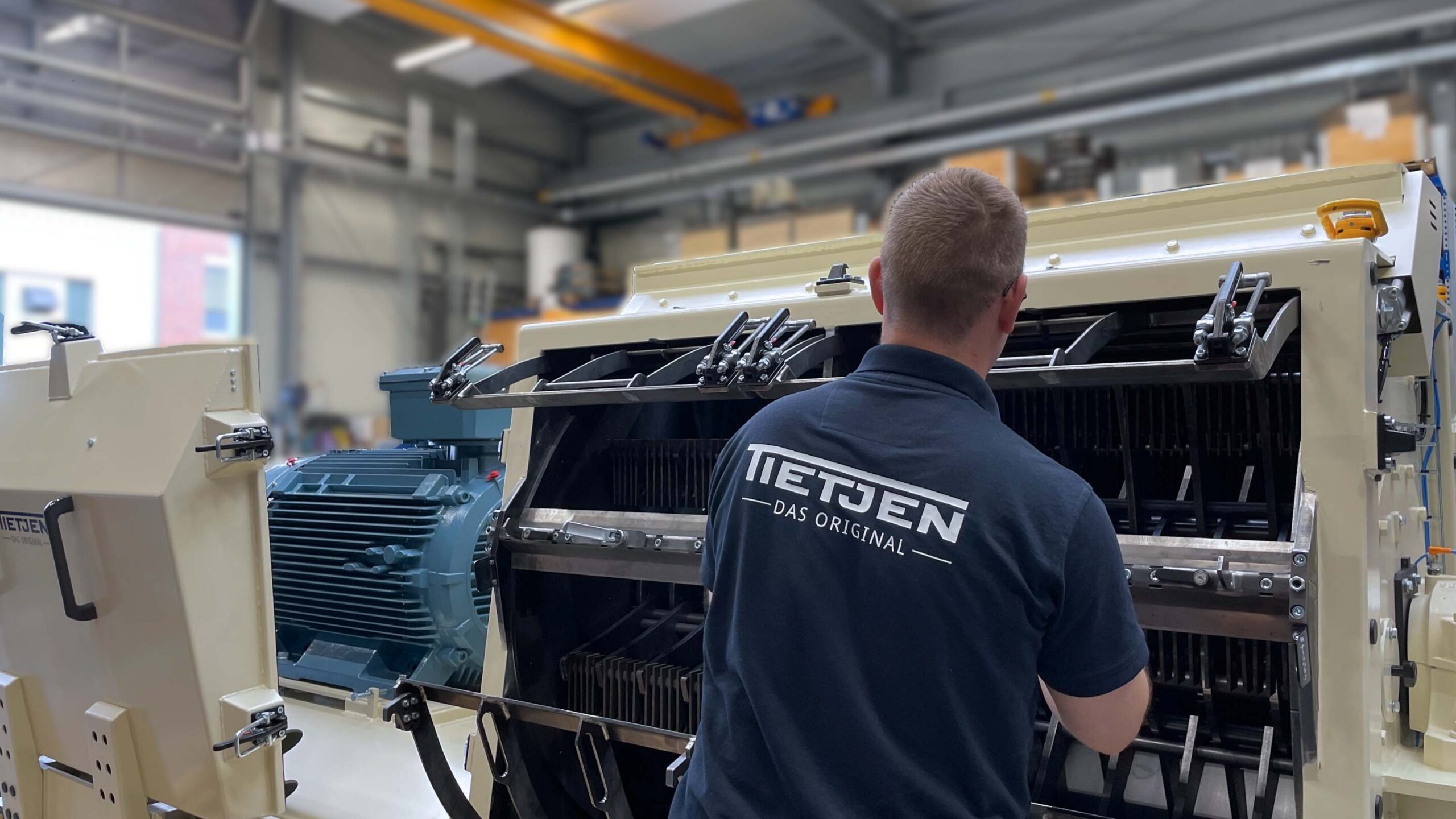

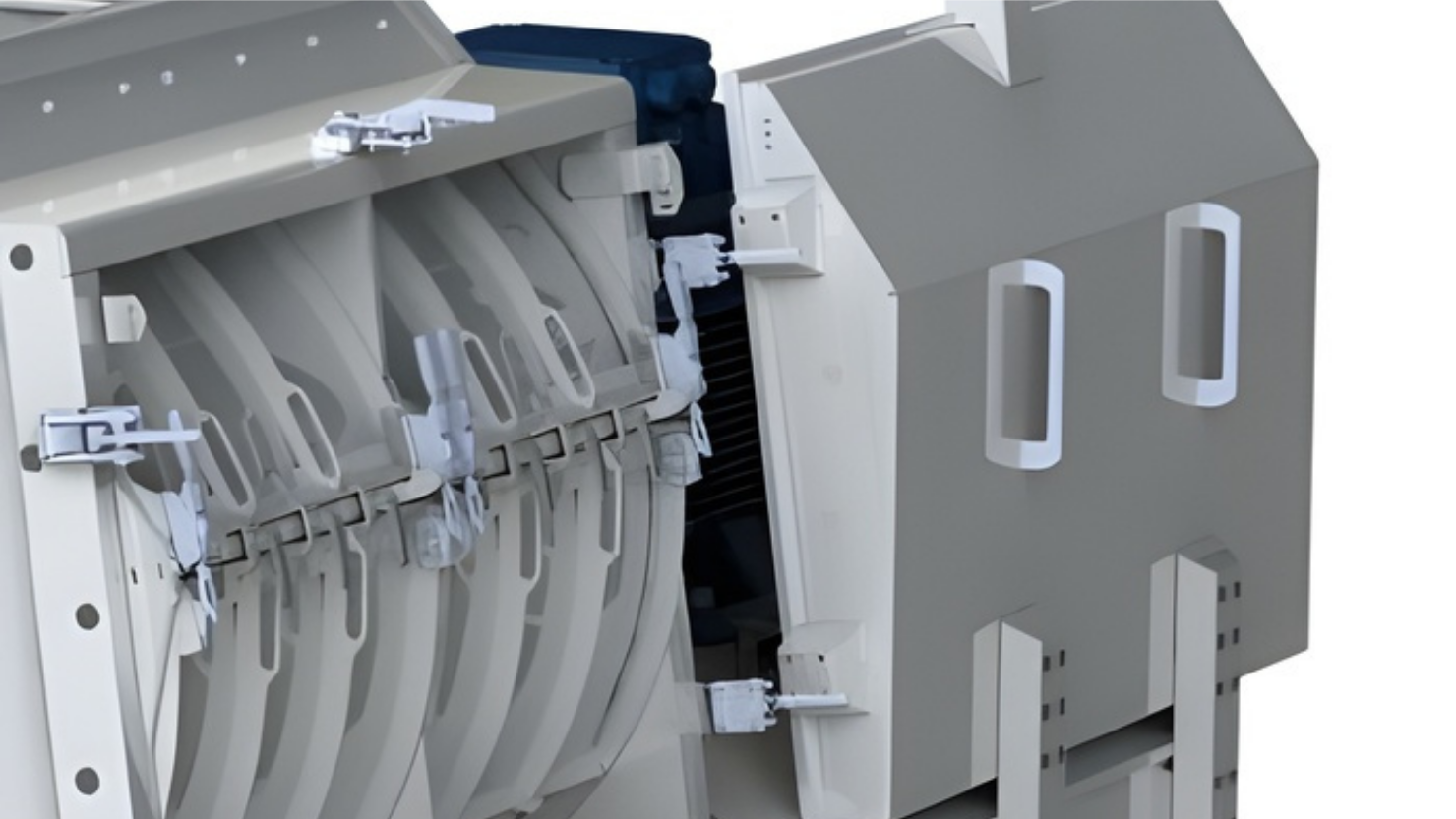

Sliding doors for easy access to the grinding chamber
Technical Data
| Machine types | FD 16 Pro | FD 24 Pro | FD 32 Pro |
| Number of grinding chambers | 1 | 2 | 2 |
| Grinding chamber diameter (mm) | 1300 | 1300 | 1300 |
| Screen width (nn) | 1 x 800 | 2 x 600 | 2 x 800 |
| Grinding chamber area/screen area (m²) | 2.4 | 3.6 | 4.8 |
| Required feed | 1 | 1 | 2 |
| Dimensions and weights* | |||
| Length x width x height (approx. mm) | 3000 x 1900 x 1746 | 3650 x 1900 x 1746 | 4080 x 1900 x 1746 |
| Weight without motor (approx. kg) | 3400 kg | 4500 kg | 5160 kg |
| Drive | |||
| Engine size (kW) | 200 – 315 kW | 315 – 450 kW | 355 – 450 kW |
| Speed 50 Hz/60 Hz (rpm) | 1500/1800 | 1500/1800 | 1500/1800 |
| Speed with frequency converter 34-60 Hz | 1000 – 1800 | 1000 – 1800 | 1000 – 1800 |
