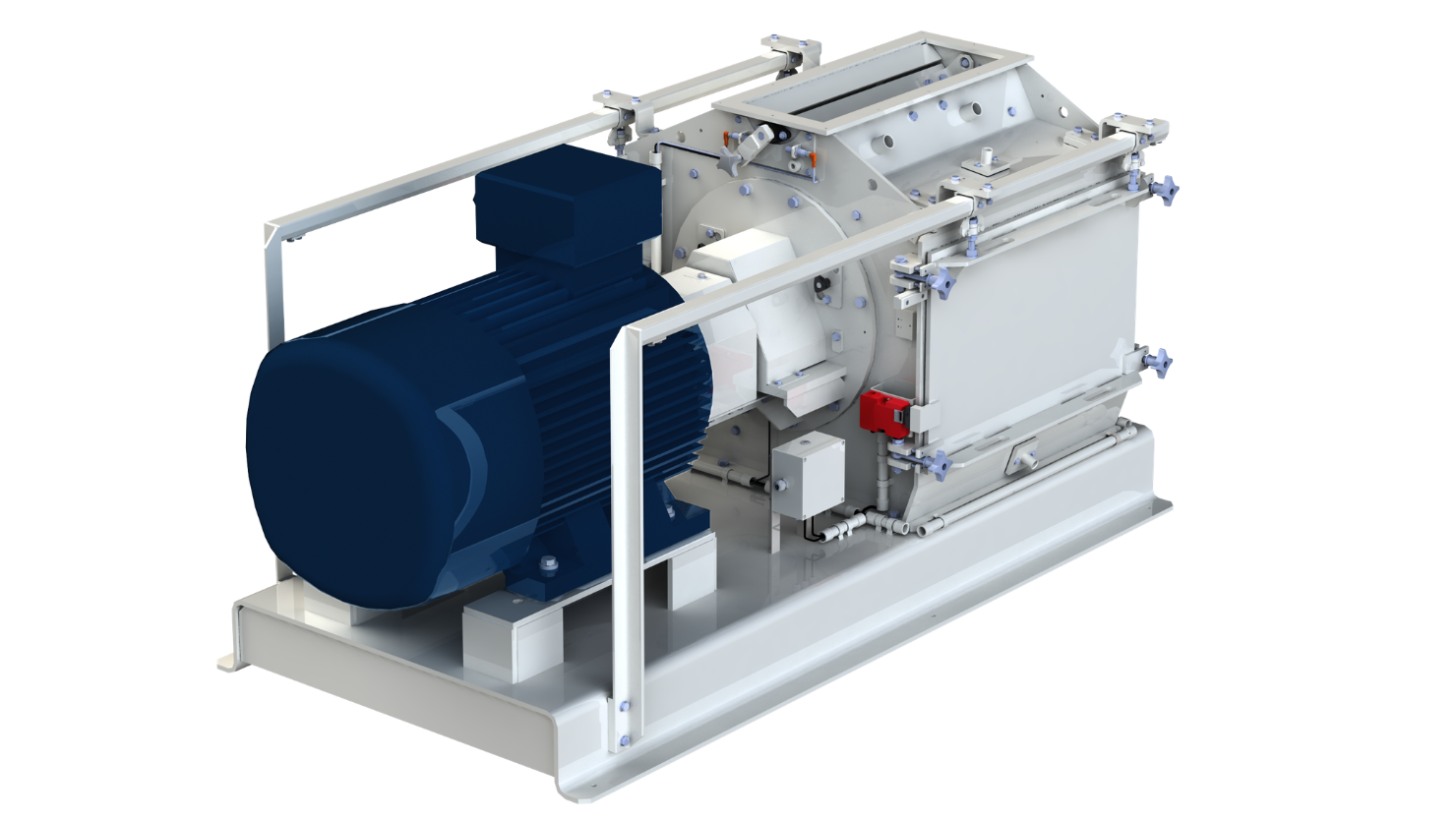

Wet Hammer Mill NDK
Developed for ethanol and alcohol producers
- Grinds freshly harvested grain, potatoes and fruit
- Grinding with the addition of process water
- Made of stainless steel – robust and reliable
- Easy screen change during standstill
Recommended for
The Robust Mill for Wet Grinding
The NDK hammer mill has been specially designed for the wet grinding of cereals, potatoes, fruits, organic waste, with added liquids. Liquid quantities of e.g. water and additives e.g. enzymes are continuously added to the grinding process in dosed quantities through connection openings in the product inlet area. The product is then ready for pumping after grinding.
Take Advantage of These Benefits
Efficient Wet Grinding
- Optimised impact zone with hardened impact plates on both sides of the inlet
- Universal use from fine to coarse grinding possible
- Injection nozzles for liquid addition in the inlet area
- Suitable for the use of all common screen perforations
- Variable grist spectrum by adjusting the beater circumferential speed (when using a frequency converter), the screen perforation and the beater configuration
Reliable Operation and Long Service Life
- Robust welded steel construction for continuous industrial operation (24/7)
- Grinding chamber equipped with wear elements to protect the housing, easy to change
- Durable, optimised rotor design, dynamically balanced, operation in both directions of rotation
- Stainless steel design of rotor and housing possible
High Availability with Low Downtimes
- Quick and easy change of beaters due to beater changing device (option)
- Rotor with short run-down time < 6 min without brake
- Large hinged or sliding doors allow easy and quick access to the machine interior
- 2-part screen segments without frame, easy and quick to change segment by segment
High Safety of Personnel and Plant
- Standstill monitoring with door safety device
Hardened impact plates

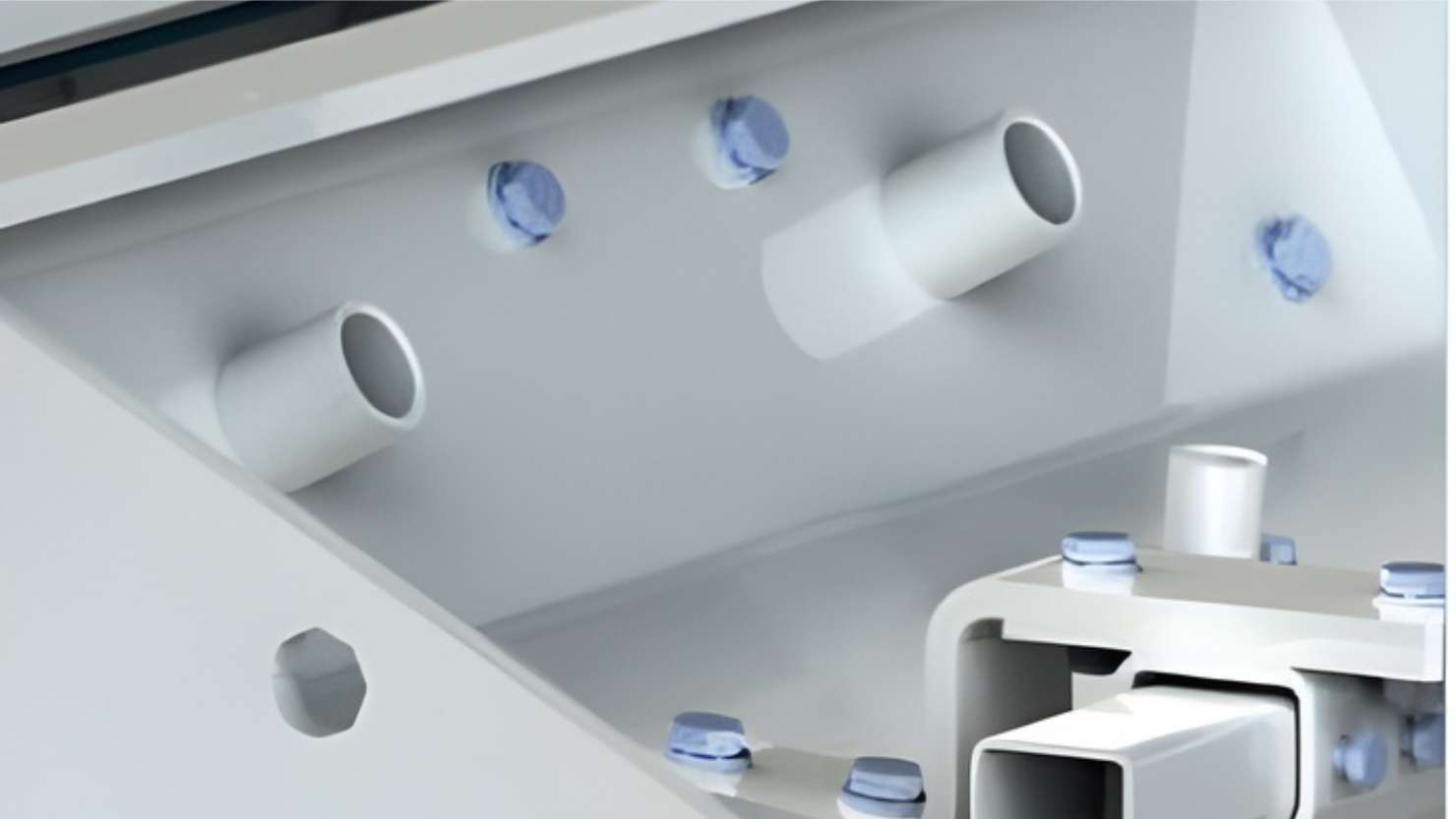

Injection nozzles for liquids

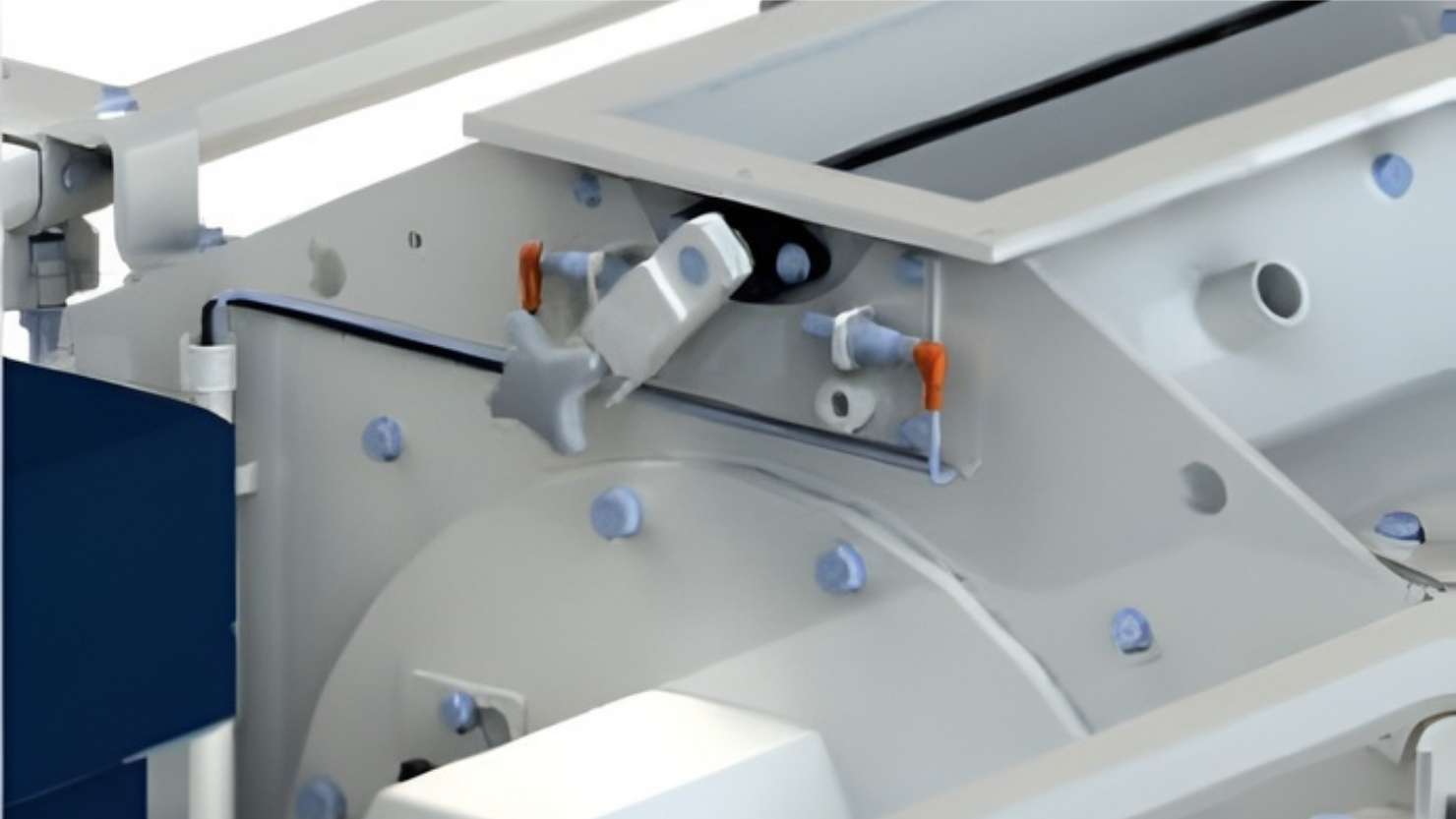

Pneumatically operated inlet flap (option)

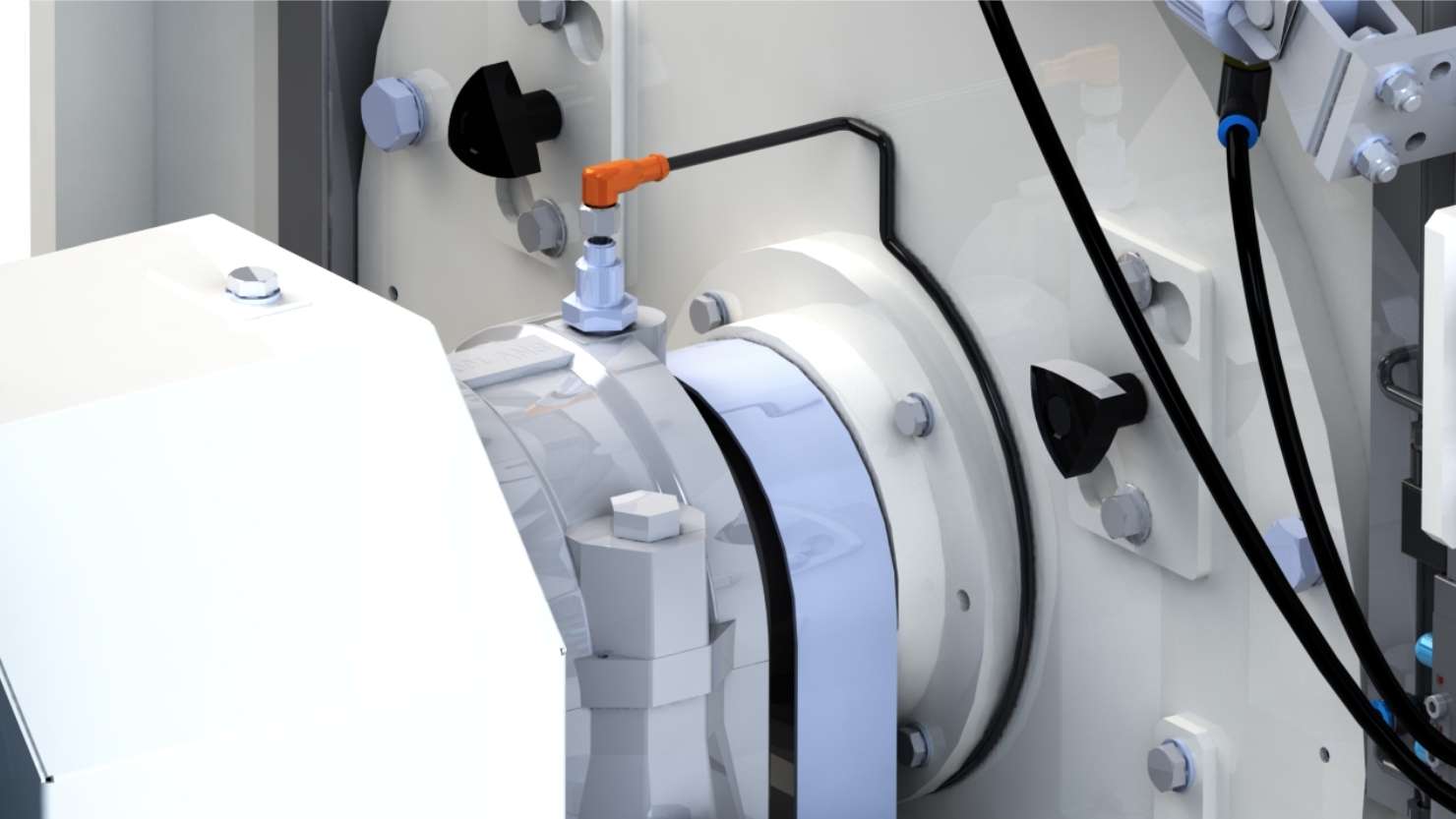

Bearing temperature monitoring
Technical Data
| Machine types | NDK 4 | NDK 5 | NDK 7 | NDK 9 |
| Grinding chamber diameter (mm) | 680 mm | 680 mm | 680 mm | 680 mm |
| Screen width (mm) | 400 mm | 520 mm | 760 mm | 1000 mm |
| Grinding chamber area (m²) | 0.62 m² | 0.80 m² | 1.18 m² | 1.54 m² |
| Dimensions and weights | ||||
| Length* x width x height (approx. mm) | 2010 x 1220 x 1195 mm | 2210 x1220 x 1195 mm | 2610 x 1220 x 1195 mm | 3010 x 1220 x 1195 mm |
| Weight without motor (approx. kg) | 1350 kg | 1400 kg | 1550 kg | 1800 kg |
| Drive | ||||
| Motor size (kW) | 45 – 75 kW | 75 – 90 kW | 90 – 132 kW | 132 – 160 kW |
| Speed 50 Hz/60 Hz (rpm) | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 |
| Speed with frequency converter 34-60 Hz | 1800 – 3600 | 1800 – 3600 | 1800 – 3600 | 1800 – 3600 |
