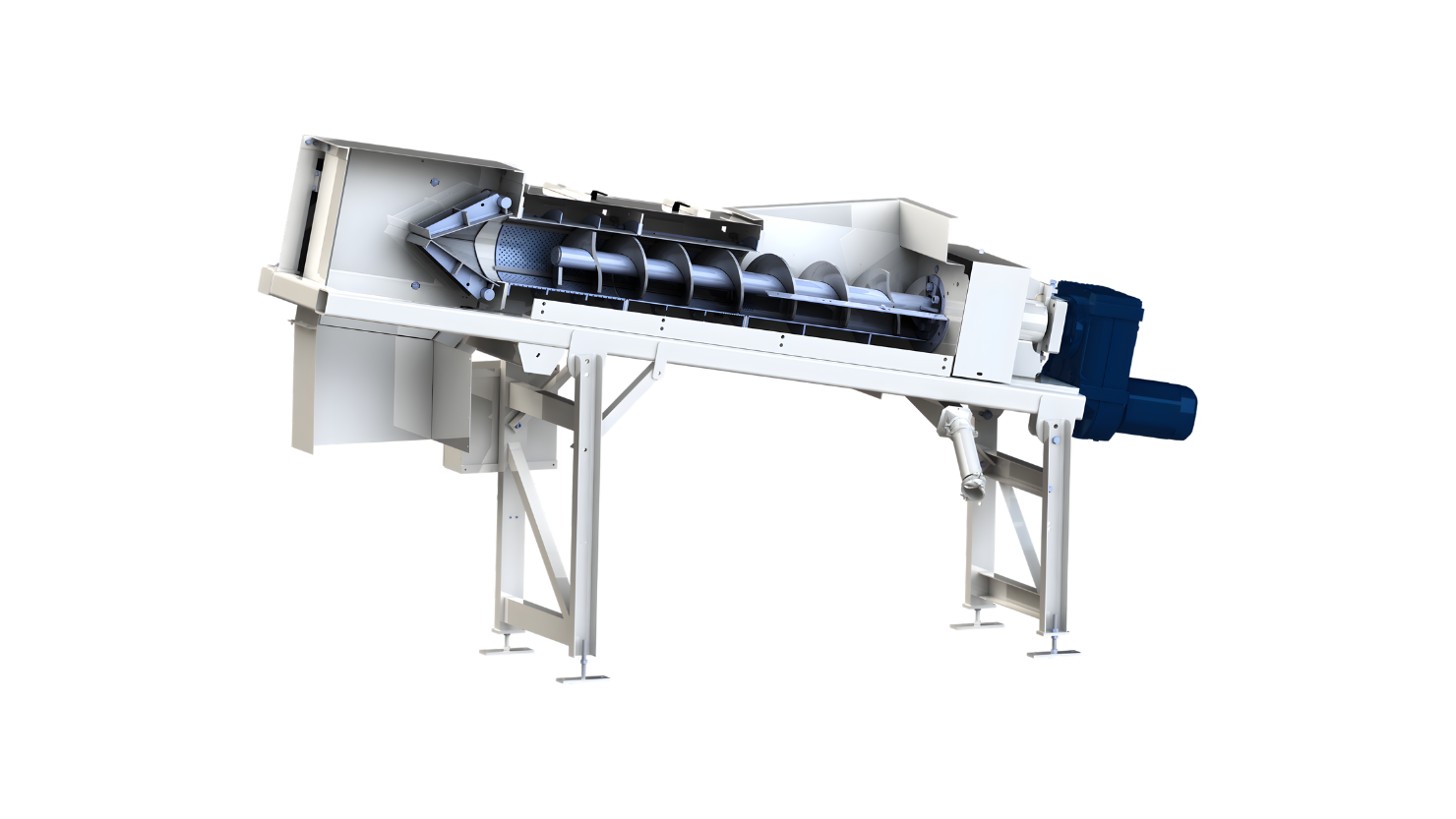

Screw Press PRS
Efficient separation of liquids from separated packaging and other materials
- Dewatering screw suitable for a wide variety of materials
- Cost reduction in the disposal of separated packaging through prior dewatering
- Fully stainless steel construction in industrial quality

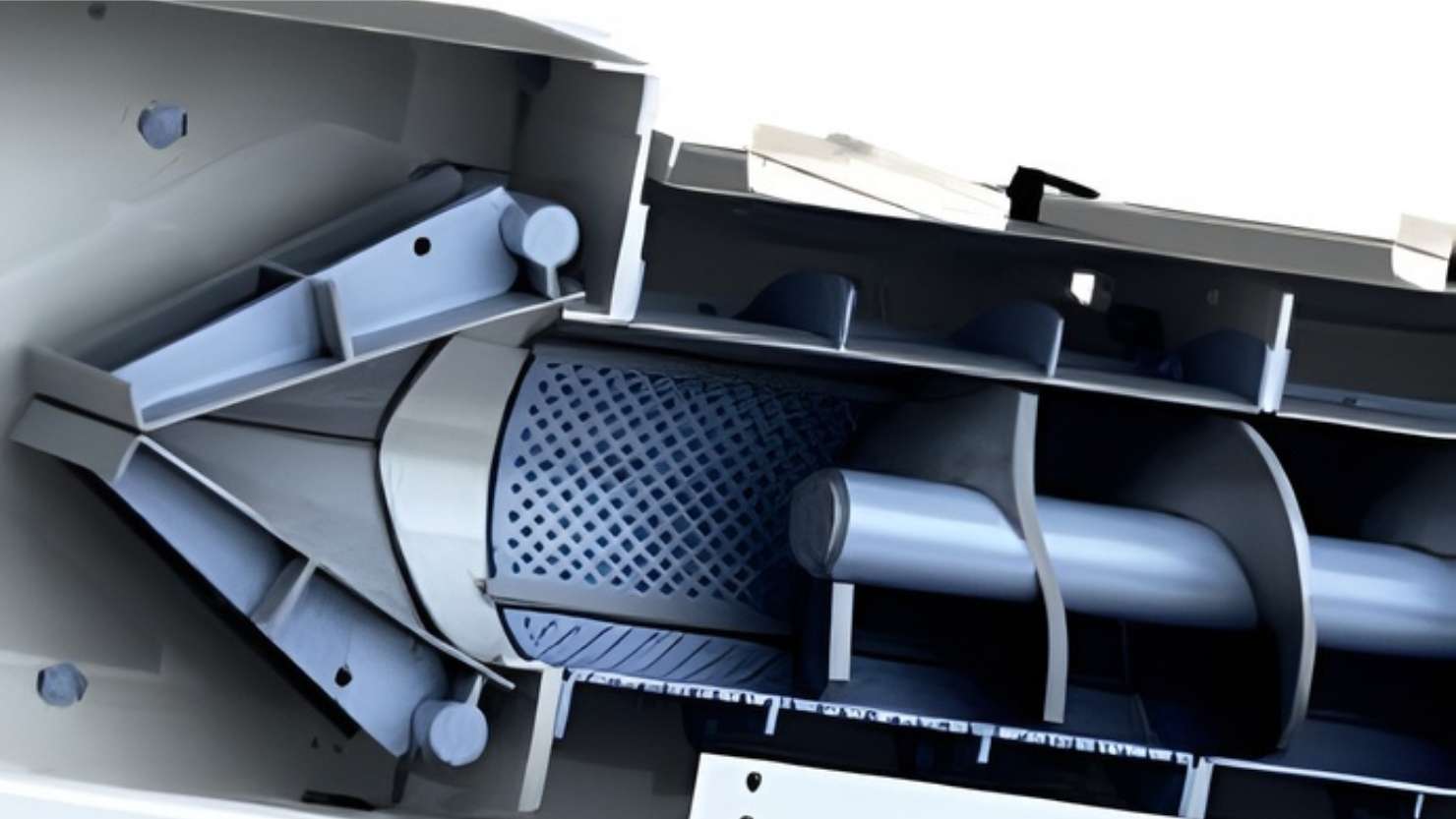

- Automatic control of press flaps for pressure adjustment
Additional Dewatering of Foreign Matter from Organic Waste
The screw press was especially developed for the removal of residual liquids on packaging material after the depackaging and separating process of packed organic waste. It is made entirely of stainless-steel (depending on the order), is extremely robust and easy to maintain. Therefore, it is ideally suited for demanding applications with difficult conditions, such as in industrial organic waste processing. The innovative design ensures a high pressing pressure with the best dewatering performance. The pneumatic control of the press flap ensures automatic adjustment to different materials. The separated liquid is collected and can be added to the remaining biomass for energy recovery. A regular cleaning can be carried out via flushing nozzles.
Take Advantage of These Benefits
- Reliable dewatering of a wide variety of foreign matter from
organic waste - The separated liquid is collected and added to the remaining
organic matter for energy use - Automatic control of the press flaps for pressure adjustment
with different materials - Flushing nozzles for easy cleaning through backwashing
- Robust welded/screw construction made of stainless steel for
continuous industrial operation (24/7) - Design with product contact parts in stainless steel or completely

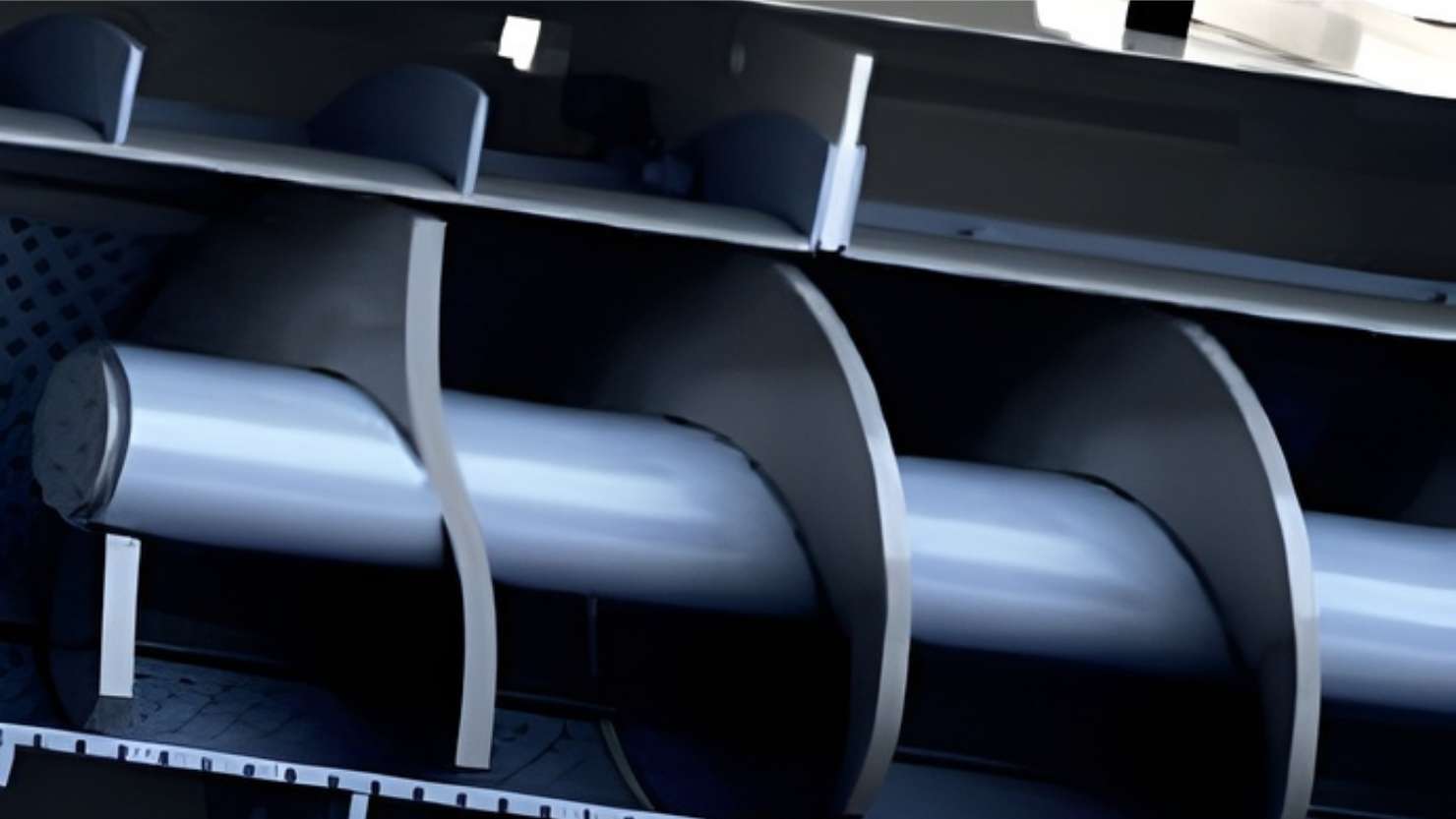

in stainless - Screw thread made of thick-walled stainless steel
- Quick-opening covers and segmented screens for easy
maintenance - Large inlet and outlet for trouble-free operation
- Screw reversible in case of malfunction
Technical Data
| Machine types | PRS 300 |
| Diameter screw thread (mm) | 300 mm |
| Drive motor (kW) | 7,5 kW |
| Dimensions and weight | |
| Length (approx. mm) | 4800 mm |
| Width (approx. mm) | 855 mm |
| Height (approx. mm) | 1000 mm |
| Weight (approx. mm) | 2100 kg |
