Air Gravity Separator AGS AD
Foreign matter separator for free-flowing products
- Safe operation: Efficient separation of magnetic foreign matter and heavy particles
- Feeds the mill in combination with TTS & TRS dosing screws
- Automatic foreign matter discharge with the AGS AD via an integrated screw conveyor
Foreign Body Separation with Automated Discharge

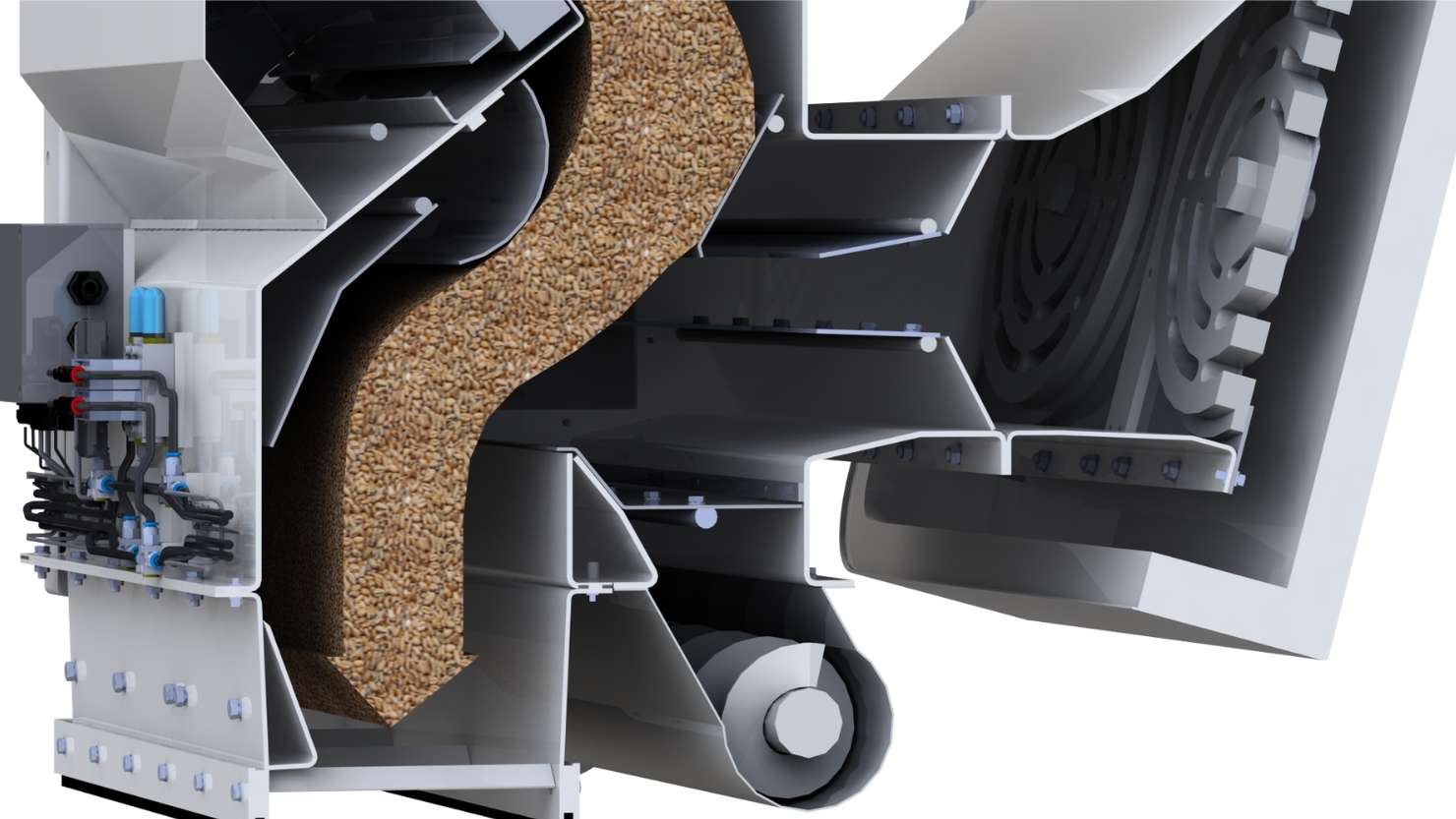

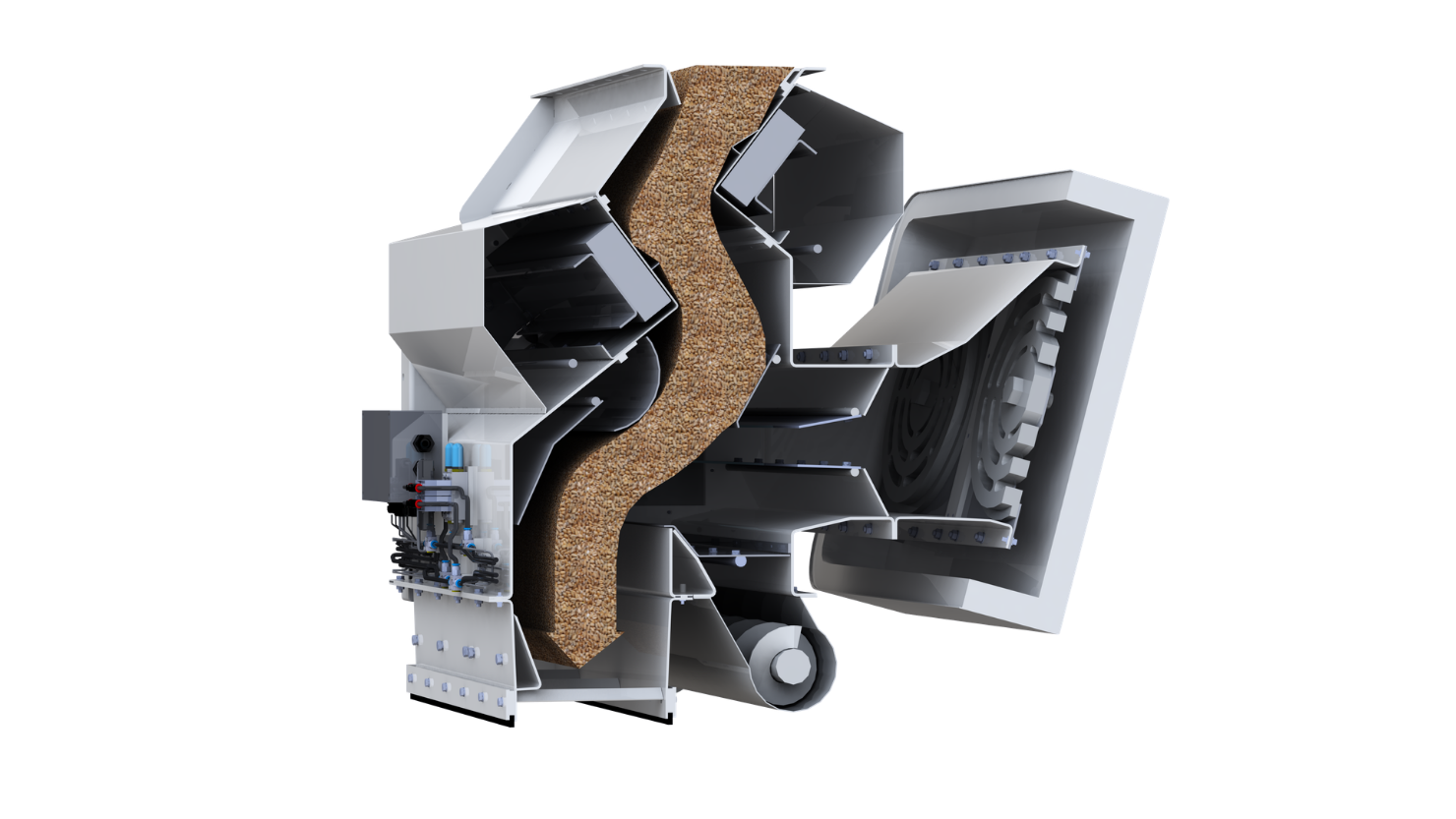

The air-gravity separator AGS AD is used for aspiration of the hammer mill and simultaneous continuous separation of foreign bodies of all kinds. A cascade with extra strong permanent magnets separates magnetic metal foreign bodies. Non-magnetic foreign bodies are separated in the air flow of the aspiration air. The air flow in the separator can be adapted to the grinding material by means of baffles.

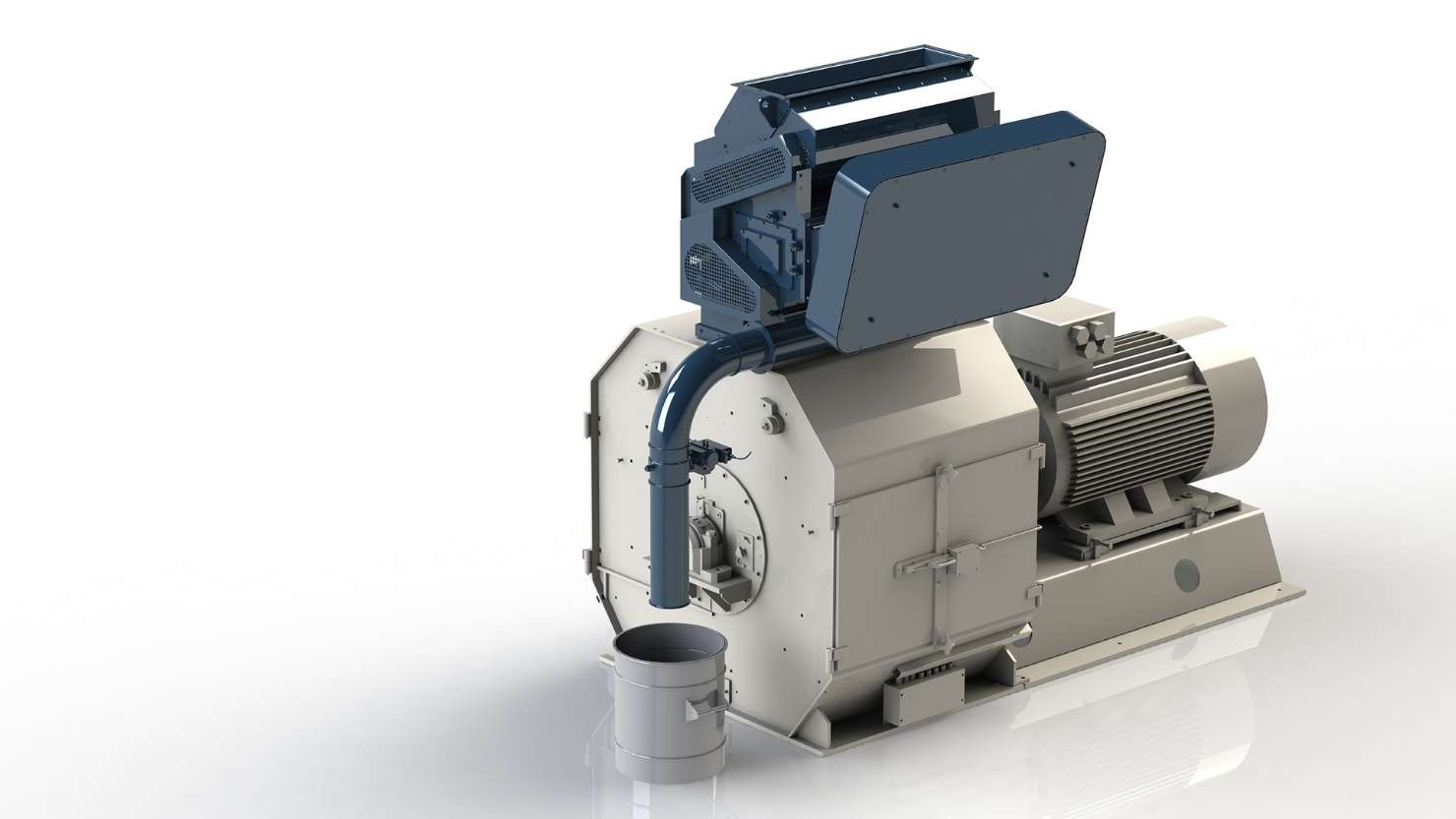

Pneumatically swivelling magnets and flaps clean the foreign particles fully automatically and discharge them time-controlled into a collecting screw. The collecting screw discharges the material via a lateral pipe. To ensure pressure surge resistance, the pipeline is closed by a pipe flap during discharge. A dedicated control system controls this process.
The AGS and the AGS AD have the same installation height and the same flange dimension, so that an AGS can easily be exchanged for an AGS AD.
Take Advantage of These Benefits

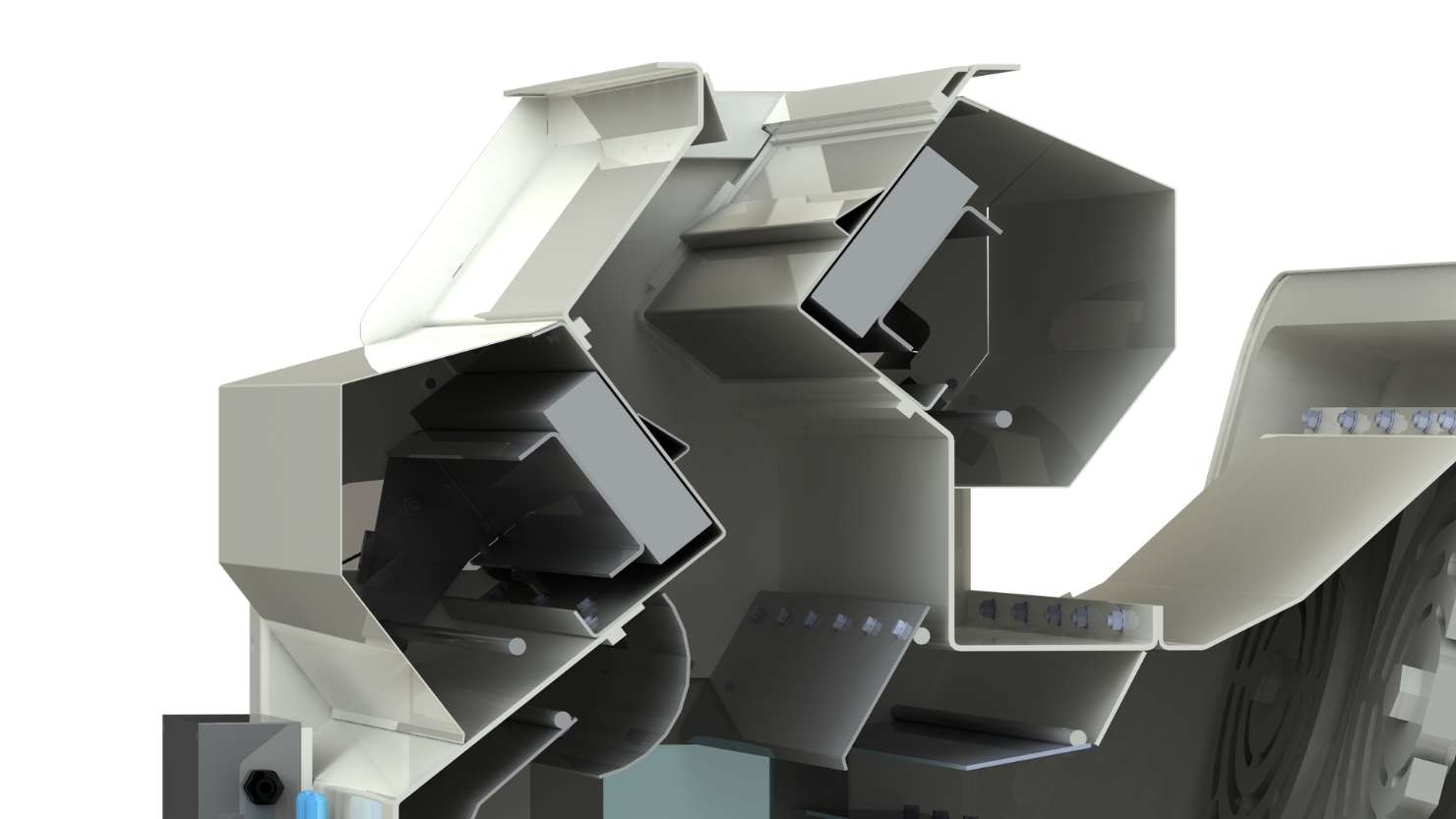

- Two extra strong permanent magnets for the separation of magnetic foreign bodies
- Cross-flow sifting for separation of non-magnetic foreign bodies and heavy parts

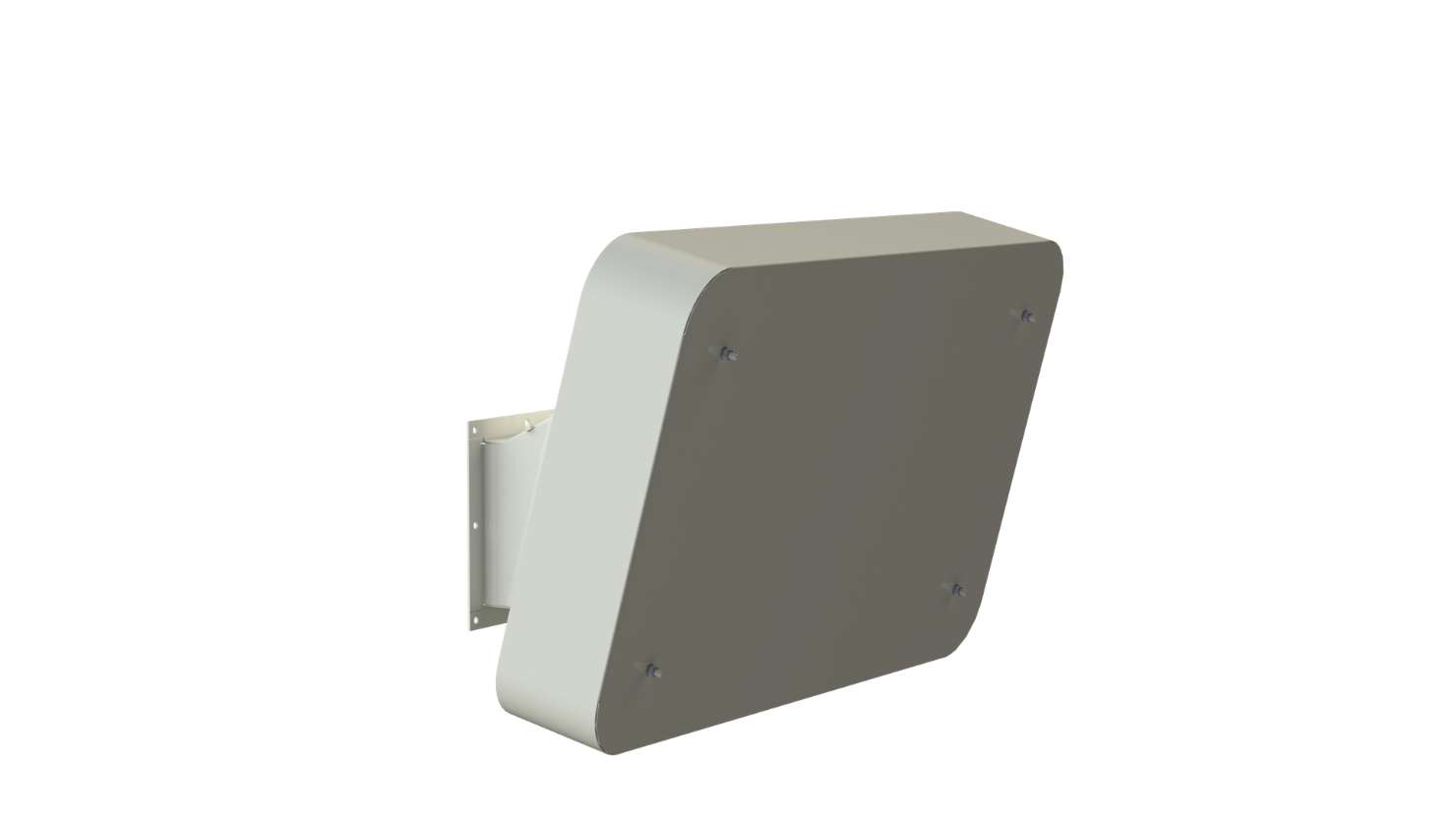

- Air flow can be adjusted to the product characteristics with vanes
- Fully automatic cleaning of the magnets and emptying of the foreign part catch tray (pneumatically operated)

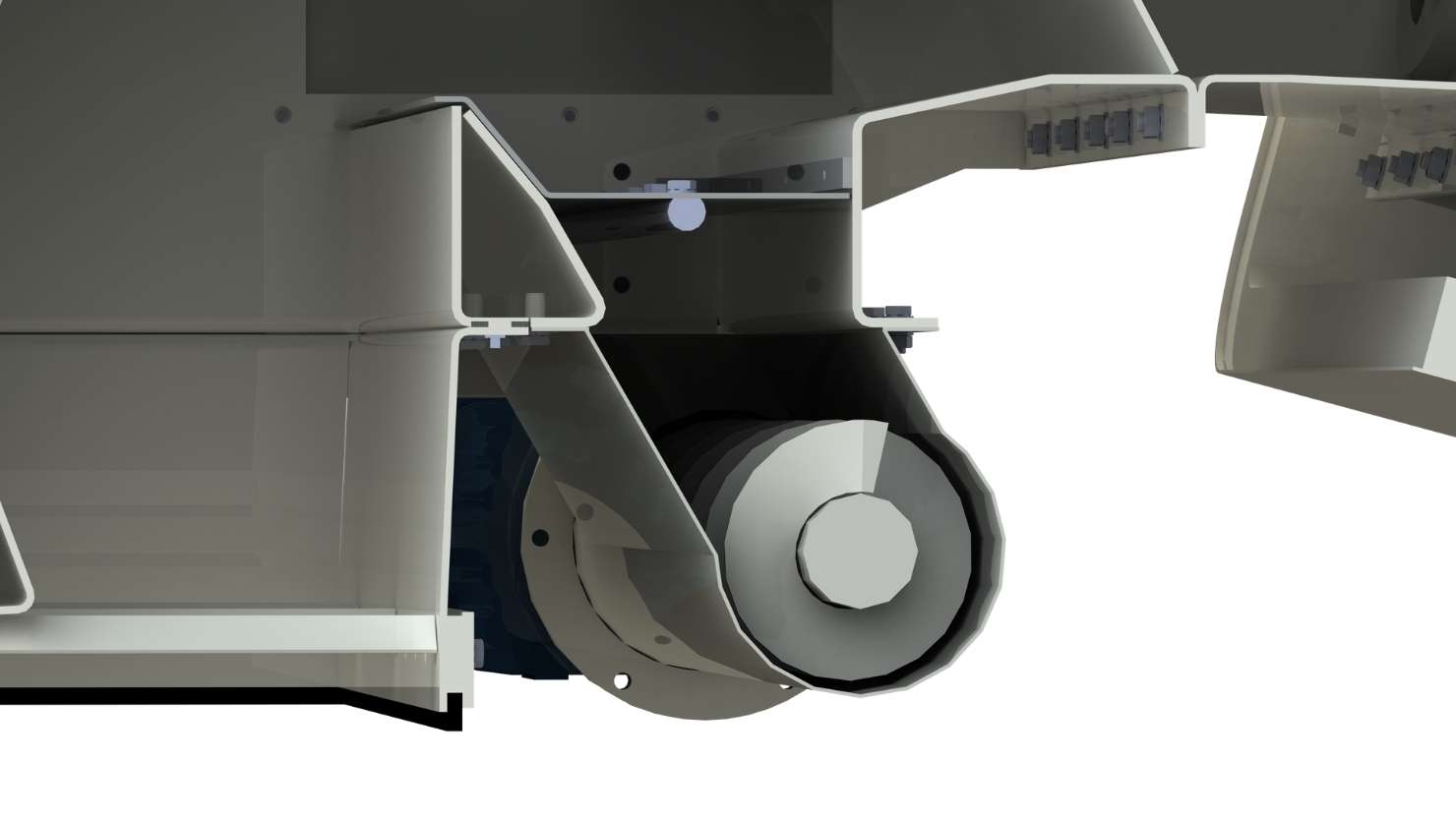

- Discharge of foreign bodies via an integrated screw conveyor
- Discharge of foreign bodies via a pipeline at the side of the mill, e.g. into a collection container
- Robust welded steel construction for continuous industrial operation (24/7)
- The foreign body separator is ideally suited in combination with
- our screw feeders TTS for optimum charging of the hammer mill
- Avoidance of mill downtimes in case of damage by foreign bodies
- Fully automatic cleaning without the need for personnel
- Pressure shock resistant and flameproof design (0.4 bar)
- ATEX design according to zone 21 (II 2 D) inside and 22 (II 3 D) outside optionally possible
- Pressure shock resistance also ensured during the cleaning process by a pipe flap
Technical Data
| Machine types | AGS 650 AD | AGD 800 AD | AGS 1000 AD | AGS 1200 AD |
| Throughput capacity at 0.6 t/m³ (t/h) | 55 t/h | 63 t/h | 80 t/h | 92 t/h |
| Throughput (m³/h) | 90 m³/h | 105 m³/h | 132 m³/h | 154 m³/h |
| Air volume (m³/min) | 95 m³/min | 110 m³/min | 140 m³/min | 176 m³/min |
| Dimensions and Weight | ||||
| Working width (mm) | 650 mm | 760 mm | 960 mm | 1112 mm |
| Installation height (mm) | 1095 mm | 1095 mm | 1095 mm | 1095 mm |
| Width (mm) | 830 mm | 980 mm | 1180 mm | 1380 mm |
| Depth (mm) | 695 mm | 695 mm | 695 mm | 695 mm |
| Weight (kg) | 480 kg | 500 kg | 560 kg | 600 kg |
| Drive | ||||
| Gear motor screw (kW) | 0,18 kW | 0,18 kW | 0,18 kW | 0,18 kW |
| Compressed air supply (approx. bar) | 6 | 6 | 6 | 6 |
Tell Us about Your Challenge. We´ll Find the Right Solution.
Briefly describe your requirements to us – we will listen, ask the right questions and develop a customised Tietjen solution for your application.
