Drum Feeder DA

For dosing free-flowing bulk materials

  • Foreign matter separator for free-flowing products
  • Separation of magnetic foreign matter and heavy particles
  • Load-dependent dosing of the product
  • Integrated explosion decoupling to the pre-chopper
Recommended for
Hintergrund Produkte 1030 x580

Dosing of Free-Flowing Bulk Materials

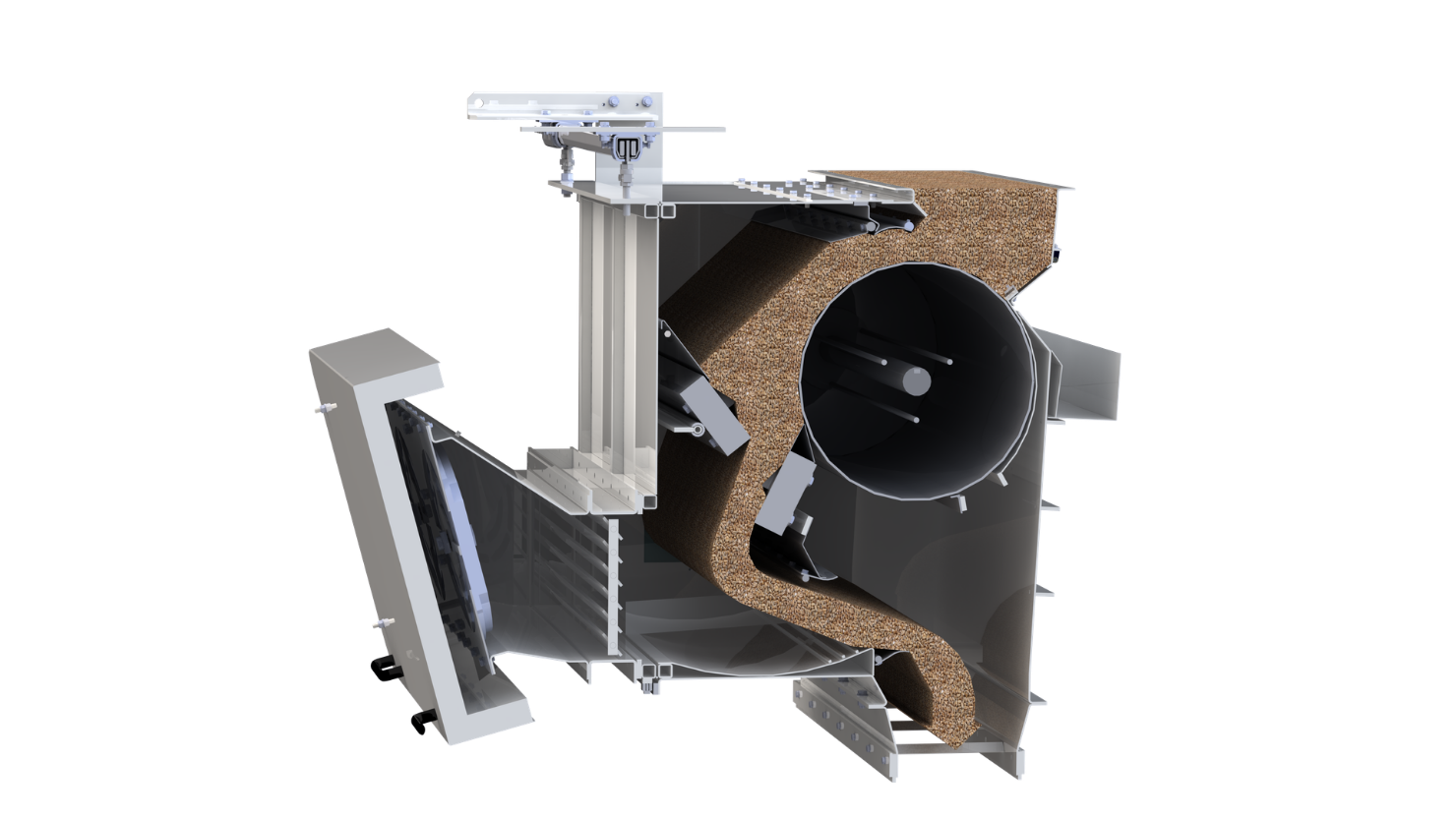

The drum feed device distributes the material from a pre-hopper evenly over the entire width of the mill. By regulating the speed of the drum, the amount of material the mill can be charged load-dependent. The drum feeder is additionally used for aspiration of the hammer mill as well as for continuous separation of foreign bodies of all kinds by means of two magnets and cross-flow sifting.

Take Advantage of These Benefits

Precise Feeding and Efficient Foreign Body Separation
Reliable Operation and Long Service Life
High Availability
High Safety of Personnel and Plant
  • Load-dependent feeding of the hammer mill in combination with a controlled frequency converter
  • Two extra strong permanent magnets for the separation of magnetic foreign bodies
  • Cross-flow sifting for separation of non-magnetic foreign bodies and heavy parts
  • Air flow adjustable to the product properties with vanes
  • Pneumatically locked shut-off flap for shutting off the pre-hopper after the end of the batch
  • Integrated empty indicator for controlling the shut-off flap
  • Robust welded steel construction for continuous industrial operation (24/7)
  • Avoidance of mill downtimes in case of damage by foreign bodies
  • Easy access for cleaning and maintenance through flaps and a sliding door
  • Magnets easy to clean
  • Catch tray for cleaning the magnets, is hooked into the door opening
  • Easy cleaning of the heavy parts catch tray
  • Pressure shock resistant and flameproof design (0.4 bar)
  • ATEX design according to zone 21 (II 2 D) inside and 22 (II 3 D) outside optionally possible
Precise Feeding and Efficient Foreign Body Separation
  • Load-dependent feeding of the hammer mill in combination with a controlled frequency converter
  • Two extra strong permanent magnets for the separation of magnetic foreign bodies
  • Cross-flow sifting for separation of non-magnetic foreign bodies and heavy parts
  • Air flow adjustable to the product properties with vanes
  • Pneumatically locked shut-off flap for shutting off the pre-hopper after the end of the batch
  • Integrated empty indicator for controlling the shut-off flap
Reliable Operation and Long Service Life
  • Robust welded steel construction for continuous industrial operation (24/7)
High Availability
  • Avoidance of mill downtimes in case of damage by foreign bodies
  • Easy access for cleaning and maintenance through flaps and a sliding door
  • Magnets easy to clean
  • Catch tray for cleaning the magnets, is hooked into the door opening
  • Easy cleaning of the heavy parts catch tray
High Safety of Personnel and Plant
  • Pressure shock resistant and flameproof design (0.4 bar)
  • ATEX design according to zone 21 (II 2 D) inside and 22 (II 3 D) outside optionally possible

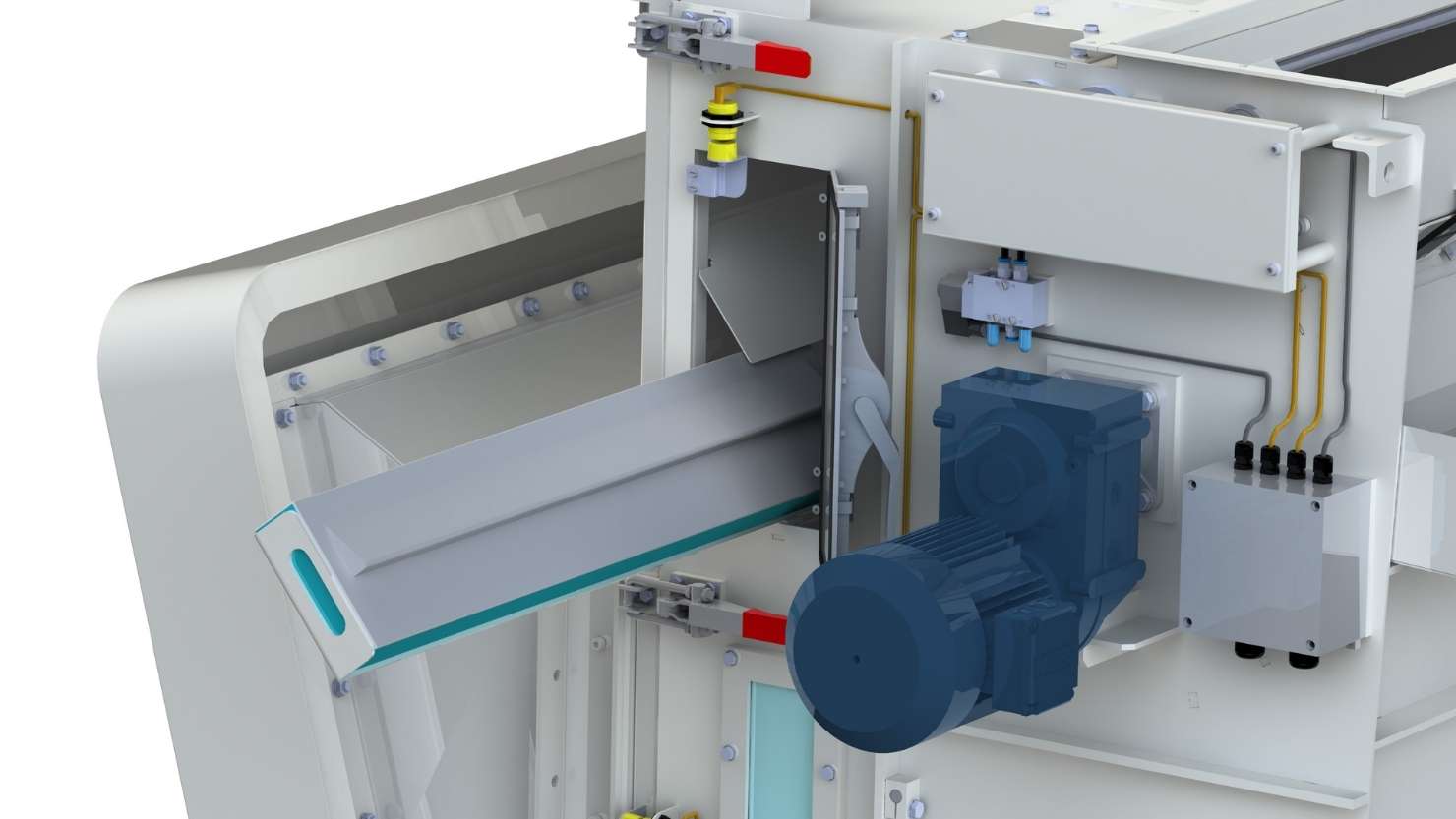

Upper Magnet can be pulled out for cleaning

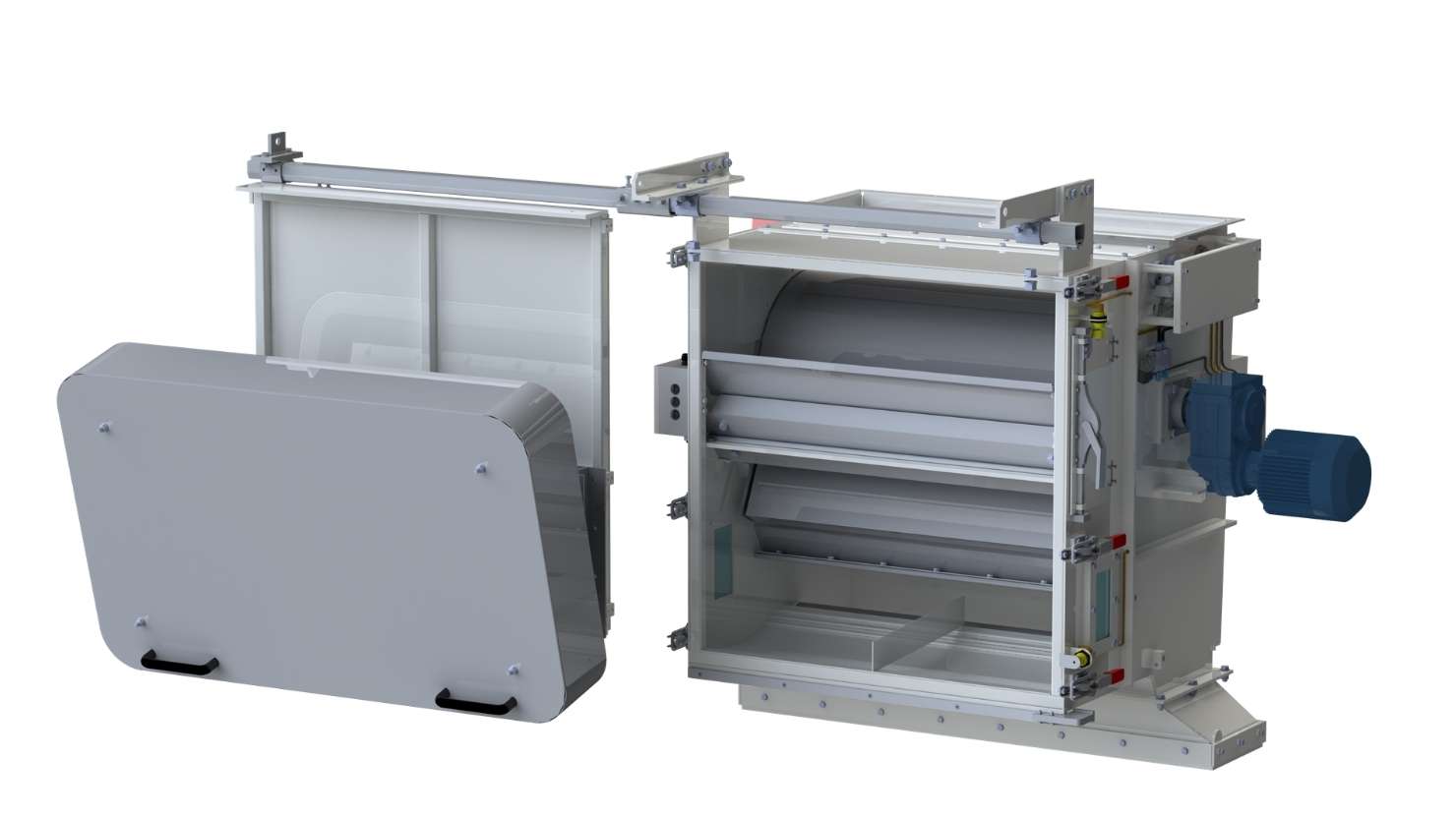

Sliding door for good accessibility to the lower magnet and the heavy parts catch trap

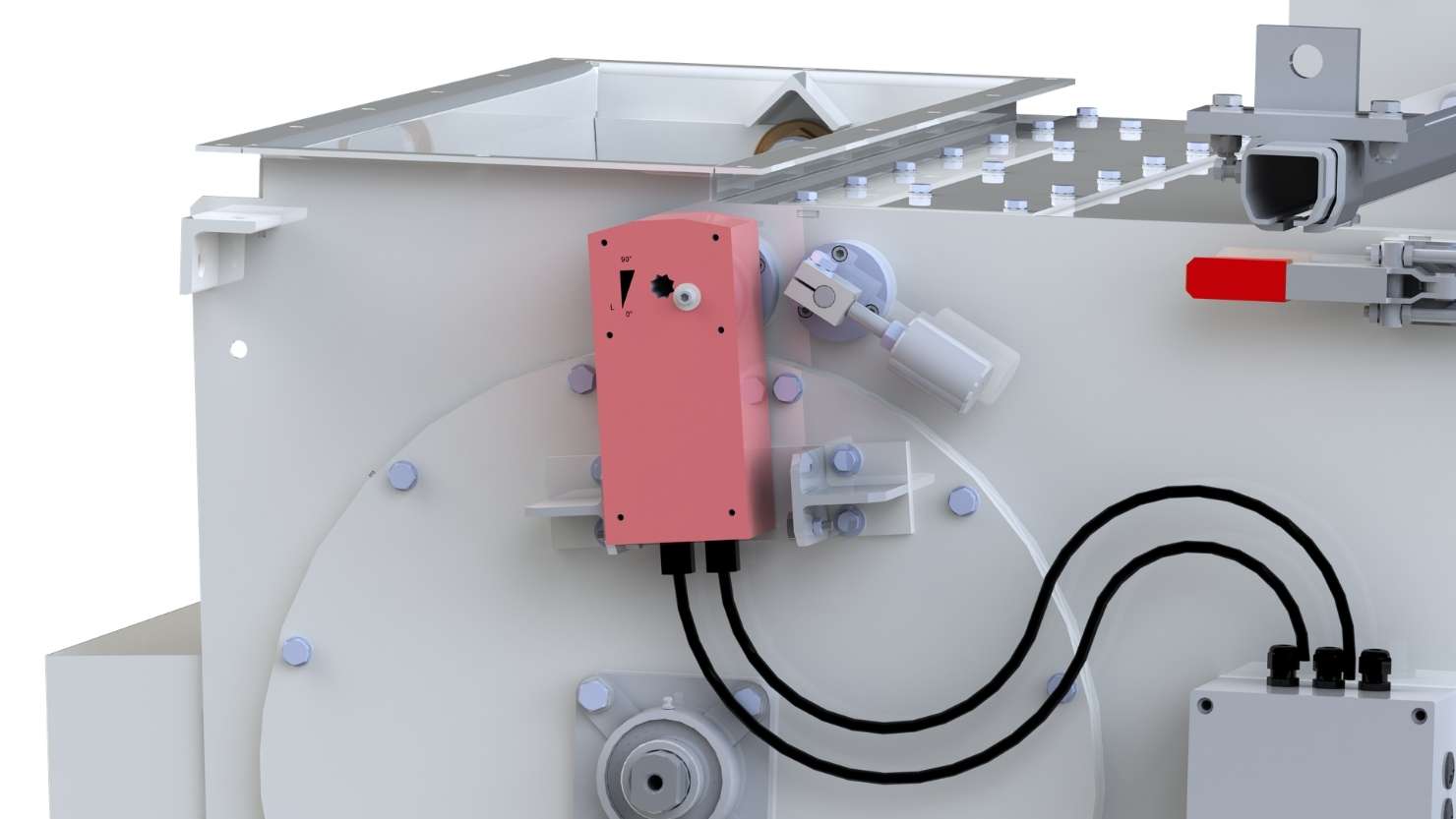

Electronically controlled slide to adjust the product layer (option)

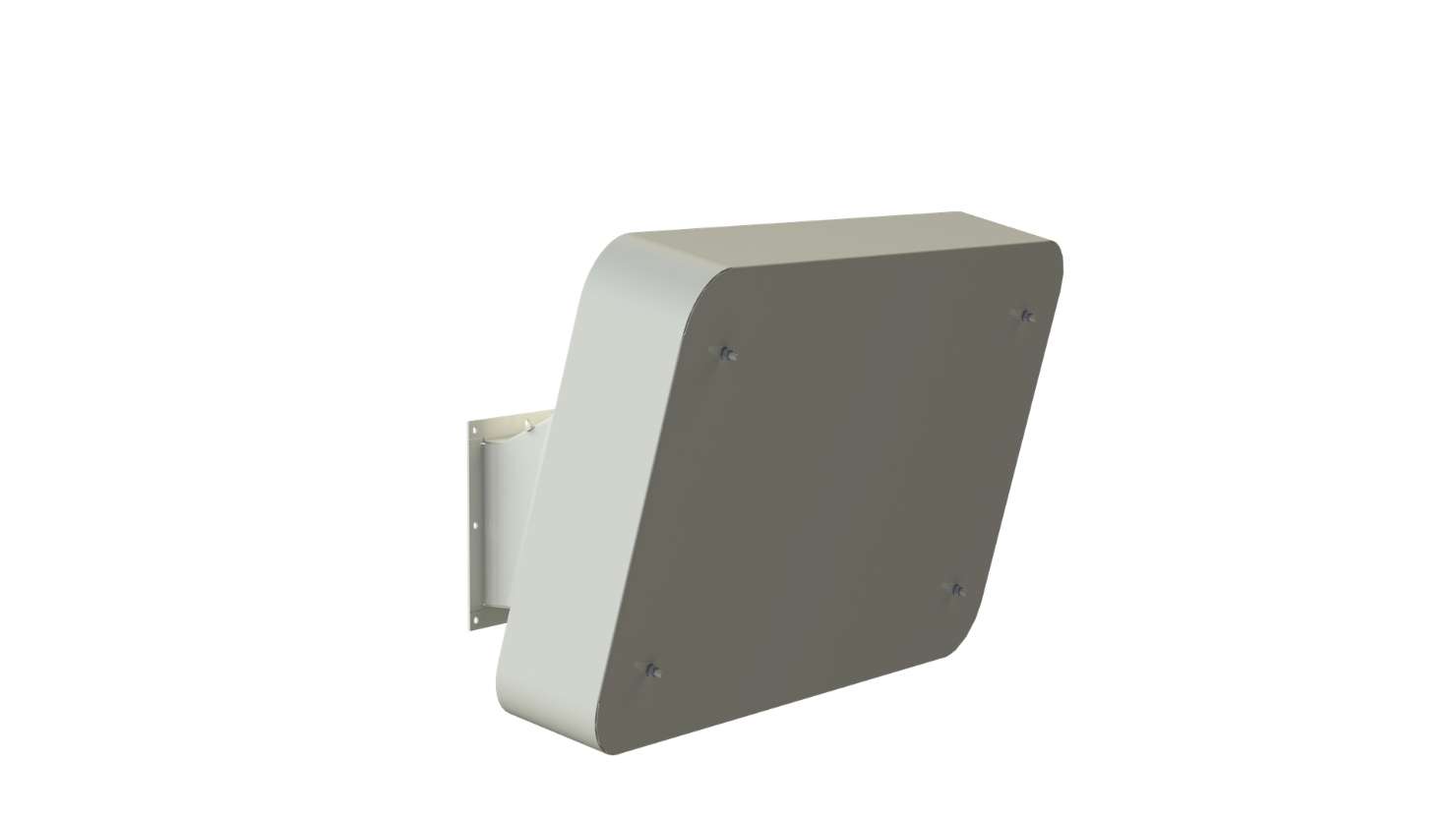

Aspiration air valve A-Vent for explosion isolation (option)

Get in Touch with Our Experts

Let us know your application details and we find out the best solution for you.

Technical Data

Machine typesDA 547DA 576DA 595
Throughput capacity at 0,6 t/m³ [t/h]42 63 81
Throughput [m³/h]70 105 135
Air volume [m³/min]100 160 210
Dimensions and Weight
Working width [mm]470 760 950
Installation height [mm]1230 1230 1230
Width [mm]990 1300 1490
Depth [mm]730 930 1218
Weight [kg]530 600 650
Drive
Gear motor [kW]1,5 1,5 1,5
